Carbon Steel Pipe Fittings Manufacturers in India

Request a Call Back


Carbon Steel Pipe Fittings Suppliers & Manufacturers in Mumbai, India


Table Of Content

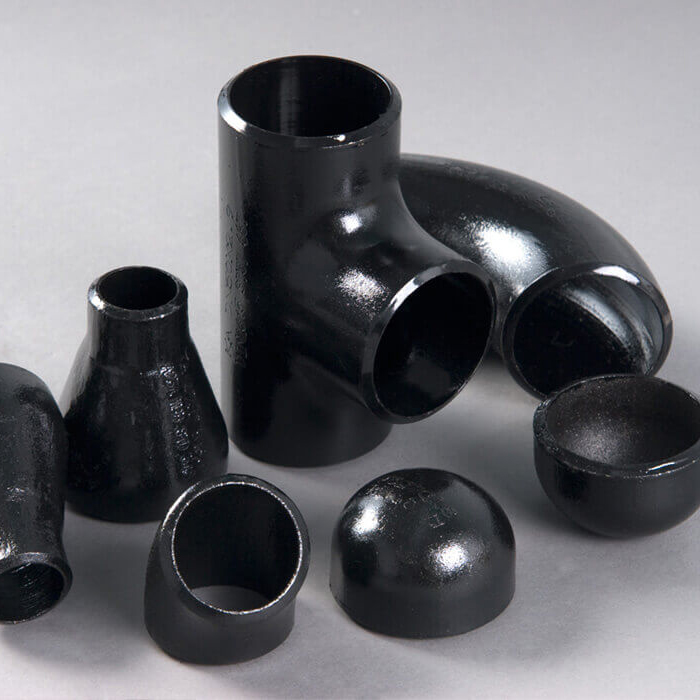

Carbon Steel Pipe Fittings Manufacturers in Mumbai, India

Fitwel Industries LLP is one of the largest exporter, manufacturers, and suppliers of Carbon Steel Pipe Fittings in India. These products are precisely designed and constructed with superior quality raw materials and sophisticated technology. Our offered Carbon Steel Products are designed and fabricated from high-grade steel and technologically advanced machinery. These products are durable in nature and require minimum maintenance.
These Carbon Steel Pipe Fittings Manufacturer in Mumbai are checked on various parameters by our qualified quality inspectors before delivery. Our Carbon Steel Pipe Fittings manufacturer in India is accessible to our valuable customers in a different and customized range of diameters, wall thicknesses, and sizes at market-leading prices.

Carbon Steel Buttweld Pipe Elbow are Carbon Steel piping solutions made of Wrought Carbon Steel, especially for use in the moderate to high-temperature service range. Carbon Steel Seamless Pipe Fittings are the most ordinarily used pipe fittings. Carbon Steel Welded Pipe Fittings is the most ordinarily used pipe fittings. ASTM A234 covers wrought carbon steel and alloy steel fittings of seamless and welded construction covered by the latest revision of ASME B16.9, B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, and MSS-SP-97. These fittings are used in pressure piping and in pressure vessel fabrication for service at moderate and elevated temperatures.

Carbon Steel Buttweld Tee is a fitting used to connect three pipes together at one point. The tee can be an equal tee to connect three equally sized pipes or an unequal tee to connect unequally sized pipes. The Carbon Steel Pipe Reducer is a seamless product that reduces the diameter of the pipeline. The reducer both ends with varying diameters that fit with varying diameter pipes. There are eccentric and concentric types of reducers. The Carbon Steel End Cap is a fitting that is used to terminate a pipeline. We offer Carbon Steel Buttweld Fittings like end caps, bends, elbows, reducers, unions, tees, etc. which give an outstanding performance at the pressure vessel and chemical and acid manufacturing units.
Please feel free to contact us for more information on the products and pricing of carbon steel buttweld range of fittings.

Carbon Steel Pipe Fittings Technical Standards

As a leading Carbon Steel Fittings manufacturer in India, we do supply different types, dimensions, grades, and variations of the Carbon Steel Elbow Sch 40 and another fitting. The elbows are one of the commonly used fittings. The carbon steels are used for their high toughness and high wear resistance. The Schedule 10 carbon steel buttweld fittings are some of the low schedule fittings. The schedules can range from 5 to 160 and XXS.
The schedules are relationships between the wall thickness and the outer diameter. The Carbon steel seamless fittings can range from ½ inches to 48 inches in outer diameter. They belong to the B16.5 standard. There are different grades of carbon steel that are used for the production of the Schedule 10 carbon steel pipe fittings. The types vary such as bends, elbows, couplings, crosses, and tees. These fittings are made to connect pipes together. The end cap however is the one fitting that closes a line.

ASTM A234 WPB Carbon Steel Buttweld Fittings

ASTM A234 WPB is Standard Specification for steel pipe fittings includes carbon and alloy steel material for moderate and high-temperature services. ASTM A234 WPB Sch 40 Fittings covers carbon steel fittings of welded and seamless construction secured by the most recent amendment of ASME B16. 9, B16.
A234 WPB Carbon Steel Fittings is additionally exceedingly corrosion-resistant, have low string friction, and valuable where high alloyed steel is required. We are one of the prominent providers and dealers of these premium qualities ASTM A234 WPB Seamless Pipe Fitting, which is additionally utilized in Manufacturing plants, Difficult designing firms, Steel plants, and so on. ASTM A234 WPB is a Standard Specification for steel pipe fittings that includes carbon and alloy steel material for moderate and high-temperature services. ASTM A234 WPB Sch 40 Fittings covers carbon steel fittings of welded and seamless construction secured by the most recent amendment of ASME B16.9, B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, and MSS-SP-97.

What is Carbon Steel?

Carbon steel is an iron-carbon alloy, which contains up to 2.1 wt.% carbon. For carbon steels, there is no minimum specified content of other alloying elements, however, they often contain manganese. The maximum manganese, silicon, and copper content should be less than 1.65 wt.%, 0.6 wt.% and 0.6 wt.%, respectively.

What Are The Types Of Carbon Steel?

Low-carbon steel

Low-carbon steel is the most widely used form of carbon steel. These steels usually have a carbon content of less than 0.25 wt.%. They cannot be hardened by heat treatment (to form martensite) so this is usually achieved by cold work.
Carbon steels are usually relatively soft and have low strength. They do, however, have high ductility, making them excellent for machining, welding, and low cost.
High-strength, low-alloy steels (HSLA) are also often classified as low-carbon steels, however, also contain other elements such as copper, nickel, vanadium, and molybdenum. Combined, these comprise up to 10 wt.% of the steel content. High-strength, low-alloy steels, as the name suggests, have higher strengths, which are achieved by heat treatment. They also retain ductility, making them easily formable and machinable. HSLA is more resistant to corrosion than plain low-carbon steels.

Medium-carbon steel

Medium-carbon steel has a carbon content of 0.25 – 0.60 wt.% and manganese content of 0.60 – 1.65 wt.%. The mechanical properties of this steel are improved via heat treatment involving austenitizing followed by quenching and tempering, giving them a martensitic microstructure.
Heat treatment can only be performed on very thin sections, however, additional alloying elements, such as chromium, molybdenum, and nickel, can be added to improve the steel's ability to be heat-treated and, thus, hardened.
Hardened medium-carbon steels have greater strength than low-carbon steels, however, this comes at the expense of ductility and toughness.

High-carbon steel

High-carbon steel has a carbon content of 0.60– 1.25 wt.% and manganese content of 0.30 – 0.90 wt.%. It has the highest hardness and toughness of carbon steel and the lowest ductility. High-carbon steels are very wear-resistant as a result of the fact that they are almost always hardened and tempered.
Tool steels and die steels are types of high-carbon steels, which contain additional alloying elements including chromium, vanadium, molybdenum, and tungsten. The addition of these elements results in very hard wear-resistant steel, which is a result of the formation of carbide compounds such as tungsten carbide (WC).

Features Of Carbon Steel Pipe Fittings

Our Carbon Steel Buttweld Pipe Fittings are having some great features.

  • Robust Construction
  • Optimum Performance
  • High- Grade Materials
  • Sturdiness
  • Precisely Design
  • Durability
  • Advantages Of Carbon Steel Pipe Fittings

  • Good general corrosion resistance and high strength
  • Good sulfide stress corrosion resistance
  • Resistance to chloride pitting and crevice corrosion
  • Higher resistance to chloride stress corrosion cracking
  • Easy to weld and conform

  • Do you want to buy Carbon Steel Buttweld Fittings?

    Check prices before you buy A234 WPB Carbon Steel Fittings in India, India, Mumbai, UK, UAE, Singapore, Europe, etc, including ASTM A234 Grade WPB Seamless, ASTM A234 WPB Sch 40 Fittings WPB Carbon Steel fittings, and more than 100 types of WPB Carbon Steel fittings, You can also receive a free sample of ASTM A234 WPB Seamless Pipe Fitting.

    Standard Specification Of Carbon Steel Pipe Fittings

    Specifications : ASTM A234 / ASME SA234

    Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

    Size : 1/8” NB TO 48” NB.

    Type : Seamless / Welded / Fabricated

    Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s,Sch XXS


    Carbon Steel Buttweld Fitting Beveling

    All welded pipe fittings have bevelled ends to allow for ease of welding. This bevel allows for full penetration weld in most cases.
    There are two types of bevels;-

  • Plain Bevel
  • Compound Bevel

  • Chemical Composition Of Carbon Steel Pipe Fittings

    <
    Grade        C         Mn         P         S        Si         Cr         Mo         Ni         Cu         V         Nb
    WPB 0.3 0.29-1.06 0.05 0.058 0.1min 0.4 0.15 0.4 0.4 0.08 0.02
    WPC 0.35 0.29-1.06 0.05 0.058 0.1min 0.4 0.15 0.4 0.4 0.08 0.02
    WP11 CL1 0.05-0.15 0.30-0.60 0.03 0.03 0.50-1.00 1.00-1.50 0.44-0.65 - - - -
    WP11 CL2/3 0.05-0.20 0.30-0.80 0.04 0.04 0.50-1.00 1.00-1.50 0.44-0.65 - - - -

    Physical Properties Of Carbon Steel Pipe Fittings



    Carbon content (wt.%)

    Microstructure

    Properties

    Examples

    Low-carbon steel

    < 0.25

    Ferrite, pearlite

    Low hardness and cost. High ductility, toughness, machinability and weldability

    AISI 304, ASTM A815, AISI 316L

    Medium-carbon steel

    0.25 – 0.60

    Martensite

    Low hardenability, medium strength, ductility and toughness

    AISI 409, ASTM A29, SCM435

    High-carbon steel

    0.60 – 1.25

    Pearlite

    High hardness, strength, low ductility

    AISI 440C, EN 10088-3


    Mechanical Properties Of Carbon Steel Pipe Fittings

    Properties Imperial Metric
    Tensile strength 86300 psi 595 MPa
    Modulus of elasticity 29000 ksi 200 GPa
    Yield strength 37700 psi 260 MPa
    Poisson’s ratio 0.27-0.30 0.27-0.30
    Hardness, Rockwell B 85 85
    Elongation at break (in 50 mm) 55% 55%

    Carbon Steel Pipe Fittings Equivalent Grades

    Pipe Fittings Flanges Valves Bolts & Nuts
    A106 Gr A A234 Gr WPA A105 A216 Gr WCB A193 Gr B7
    A194 Gr 2H
    A106 Gr B A234 Gr WPB A105 A216 Gr WCB
    A106 Gr C A234 Gr WPC A105 A216 Gr WCB

    Notes:

  • For each reduction of 0.01% below the specified C maximum, an increase of 0.06% Mn above the specified maximum will be permitted, up to a maximum of 1.35%.
  • The sum of Cu, Ni, Cr, and Mo shall not exceed 1.00%.
  • The sum of Cr and Mo shall not exceed 0.32%.
  • The maximum carbon equivalent (C.E.) shall be 0.50, based on heat analysis and the formula C.E.=C+Mn/6+(Cr+Mo+V)/5+(Ni+Cu)/15.

  • ASTM A234 Carbon Steel Buttweld Fittings

    Seamless/ Welded 100% Radiography Tested

    Products Size
    Carbon Steel ASTM A234 WPB Elbow – Long Radius Carbon Steel ASTM A234 WPB Stub Ends Sizes 1/2″ – 48″
    Carbon Steel ASTM A234 WPB Elbow – Short Radius Carbon Steel ASTM A234 WPB Cross
    Carbon Steel ASTM A234 WPB Reducing Elbow Carbon Steel ASTM A234 WPB Reducing Cross
    Carbon Steel ASTM A234 WPB 45° Elbow Carbon Steel ASTM A234 WPB Tees
    Carbon Steel ASTM A234 WPB Fabricated Tee Carbon Steel ASTM A234 WPB End Cap
    Carbon Steel ASTM A234 WPB Reducer Carbon Steel ASTM A234 WPB Seamless Fittings
    Carbon Steel ASTM A234 WPB Concentric Reducer Carbon Steel ASTM A234 WPB Pipe Nipple
    Carbon Steel ASTM A234 WPB Eccentric Reducer Carbon Steel ASTM A234 WPB 5D Elbow
    Carbon Steel ASTM A234 WPB 3D Elbow Carbon Steel ASTM A234 WPB Welded Pipe Fittings

    ASTM A234 WPB Carbon Steel Pipe Fittings Available Types

    Carbon Steel Pipe Fittings Carbon Steel WPB Buttweld Pipe Fittings
    Carbon Steel A234 WPB Seamless Pipe Fittings Carbon Steel A234 Welded Pipe Fittings
    Carbon Steel A234 WPB Pipe Elbow Carbon Steel Buttweld Tee
    Carbon Steel Buttweld Reducer Suppliers ANSI WPB Carbon Steel Pipe Fittings
    Carbon A234 WPB Stubends Dealer ASTM A234 WPB Pipe Fittings Exporter
    Carbon Steel WPB Butt weld Fittings Stockholder Steel WPB Pipe End Cap Distributors
    Carbon Steel WPB 45deg.Elbow A234 WPB 90deg. LR Elbow Manufacturer
    Carbon Steel Grade WPB Pipe Tee Carbon Steel ASTM A234 WPB Cross
    CS WPB Butt weld Reducing Nipple Carbon WPB Short Radius Elbow
    ANSI B16.9 ASTM A234 WPB Buttweld Fitting A234 WPB End Pipe Cap Stockist
    ASTM A234 WPB Welded Pipe Fittings Carbon Steel ASME SA234 WPB Pipe Fittings

    Types Of Carbon Steel Buttweld Pipe Fittings

    What Are The Types Of Carbon Steel Pipe Fittings?

  • Carbon Steel Elbow – It is a carbon steel pipe fitting that is installed between two lengths of pipe or tube allowing a change of direction, usually 90 degrees or 45 degrees.
  • Carbon Steel Tee – A carbon steel tee is used to either combine or split a fluid flow. Most common are equal tees which have the same body and branch diameter but there is also a wide range of reducing tees where either the branch or the body is of a different diameter relative to each other.
  • Carbon Steel Cross – A carbon steel cross has one inlet and three outlets, or vice versa and like tees come in equal and reducing forms. A cross is more expensive than two tees but has the advantage of reduced space and requires less labor to install.
  • Carbon Steel Reducer – Carbon Steel Reducers are used to join two different pipe sizes together. They can be either concentric or eccentric which refers to the relative position of the center lines of the outlet and inlet. Special attention must be given when using reducers in a horizontal orientation as the slope prevents free draining of a system if not installed correctly.
  • Carbon Steel Cap or plug – It is a type of carbon steel pipe fitting which is liquid or gas-tight, and is used to cover the end of a pipe. A carbon steel end caps has a similar function to a plug. For screwed systems, the carbon steel end caps is having female threads where a plug is having male threads.
  • Carbon Steel Coupling – A carbon steel coupling connects two pipes to each other. If the size of the pipe is not the same, the fitting may be called a reducing coupling or reducer, or an adapter. By convention, the term ‘expander’ is not generally used for a coupling that increases pipe size; instead, the term ‘reducer’ is used.
  • Carbon Steel Union – A carbon steel union is similar to a coupling except that it is designed to allow quick and convenient disconnection of pipes for maintenance or fixture replacement.
  • Carbon Steel Nipple – A carbon steel short stub of pipe usually of threaded steel, brass, chlorinated polyvinyl chloride, or copper; occasionally just bare copper. A nipple is defined as being a short stub of the pipe that has external male pipe threads at each end, for connecting two other fittings. Carbon steel nipples are commonly used for hoses.


  • Call@-022-23829256. Find here a leading Carbon Steel Pipe Fittings manufacturers, exporter & suppliers India, Mumbai, Vasai, Pune, Near me. Our products are carbon steel elbow, carbon steel pipe reducer, carbon steel long radius bend. We supply a large variety of grades in the size 1/8” NB TO 48” NB, with thickness Sch 5s to Sch 160s.

    Other Names: Buttweld Pipe Fittings, Pipe Fittings, ANSI B16.9 Pipe Fittings, ANSI B16.28 Pipe Fittings

    Material: Carbon Steel, Mild Steel, LTCS Steel

    Brand: Fitwel Industries LLP

    Manufacturer: Fitwel Industries LLP

    Suppliers & Exporter: Fitwel Industries LLP

    Rating: 4.6/5 based on 473 customer reviews

    We Supply Carbon Steel Pipe Fittings For Industry's Application

    ASTM A234 WPB Carbon Steel Pipe Fittings are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of ASTM A234 WPB Carbon Steel Buttweld Fittings through a worldwide network of stock-keeping branches. These ASTM A234 WPB Carbon Steel Pipe Fittings is use in various industries like :

    • Carbon Steel Pipe Fittings For Oil & Gas Industries
    • Carbon Steel Pipe Fittings For Petrochemical Industries
    • Carbon Steel Pipe Fittings For Engineering Industries
    • Carbon Steel Pipe Fittings For Chemical Industries
    • Carbon Steel Pipe Fittings For Sugar Industries
    • Carbon Steel Pipe Fittings For Power Generation Industries
    • Carbon Steel Pipe Fittings For Fertilizers Industries
    • Carbon Steel Pipe Fittings For Food Processing Industries
    • Carbon Steel Pipe Fittings For Polymer Industries
    • Carbon Steel Pipe Fittings For Dairy Industries
    • Carbon Steel Pipe Fittings For Bio-Pharma Industries
