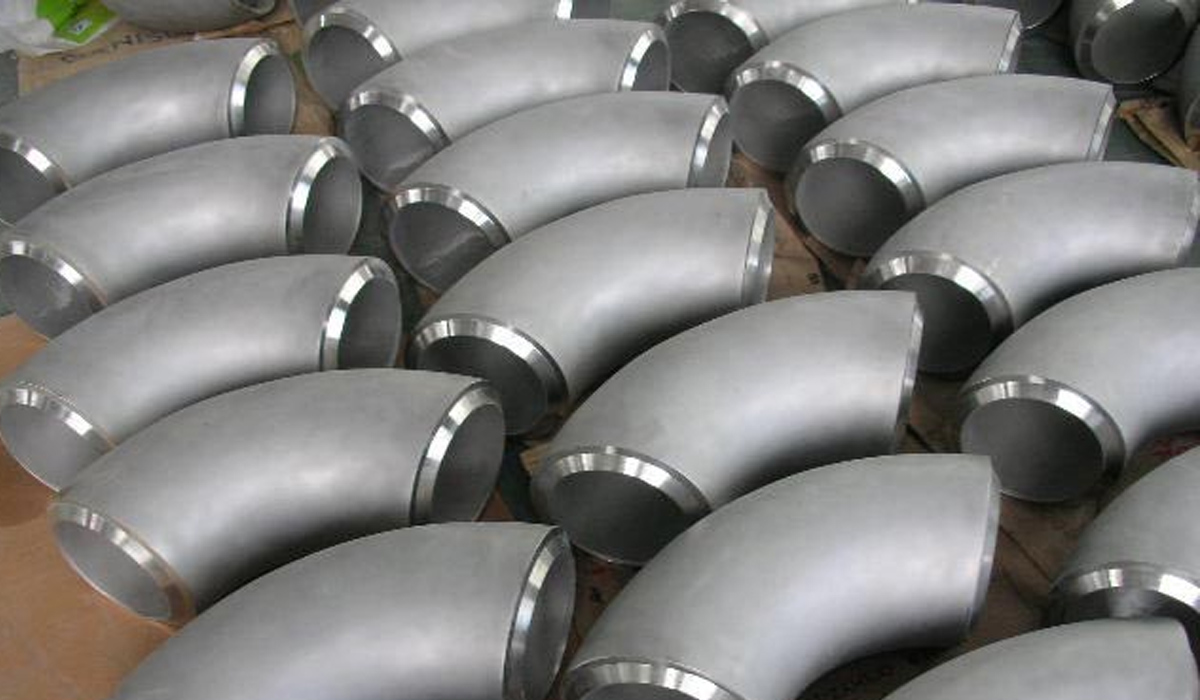

Alloy Steel ASTM A234 WP22 Buttweld Pipe Fittings Manufacturers

Request a Call Back


Alloy Steel ASTM A234 F22 Buttweld Pipe Fittings Manufacturers, Suppliers & Exporter in India

ASME B16.9 Buttweld Equal Tee

Fitwel Industries LLP is today are highly acclaimed for being the best manufacturer, exporter, and supplier of ASTM A 234 WP22 Buttweld Fittings in India. We are the customer-oriented industry that is always taking care of the needs of different clients and are thus making it available to those at various specifications. It thus varies in standards, dimensions, sizes, types, bending radius, types, and wall thickness. Also, it is made available to the clients at customized specifications as per the demands buyers have made from us. We procure quality raw materials from reputed manufacturers in India, to manufacture Alloy Steel Buttweld Fittings, and carbon steel flanges according to ASME, EN, ISO, and DIN standards. Now Fitwel Industries LLP has emerged with a high volume of quality production at a reduced time with competitive price focusing totally on customer satisfaction with high-class quality with committed early delivery at a competitive price.

ASTM A 234 is covering the wrought carbon steel as well as alloy steel pipe fitting of the welded and seamless constructions that are covered by the new versions of MSS-SP-97/83/79/95 and ASME B16.9/16.11. The fittings are used in the pressure vessel and pressure piping fabrications for the services at average and elevated temperatures. Killed steel with bars, forging, plates, sheets, the fusion-welded or seamless tubular product is with the filler metal are added. The shaping or forging operation is done by the techniques like pressing, hammering, piercing, upsetting, extruding, machining, rolling, and bending or by the combination of these techniques. After forming at the elevated temperature, the fitting is cooled to the temperature below a critical range under the appropriate conditions for preventing the damaging caused by the fast cooling. The heat treatment temperature specified is metal temperature. The development of ASTM A234 WP22 Buttweld Fittings at our manufacturing unit is done by using the superior quality of alloy. The alloy used is well tested and quality assured. We are making the use of refined technology and modern tools to add greater strength to the quality of the fittings. We are also doing the designing and fabrication of buttweld fittings according to the well-defined manufacturing norms and product quality standards. Also, We offer a wide range of Alloy Steel ASTM A234 F22 pipe fittings such as Alloy Steel F22 tee, F22 Alloy End Pipe Cap, ASTM A234 F22 reducer, A234 F22 cross, Alloy Steel A234 F22 elbow, Alloy Steel F22 stub ends, etc.


Standard Specification For Alloy Steel ASTM A234 F22 Pipe Fittings


Specifications : ASTM A234 / ASME SA234

Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

Size : 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)

Type : Seamless / Welded / Fabricated

Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom

Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS



Call@ 9987994248.Find here online the best manufacturers, exporter & suppliers of Alloy Steel ASTM A234 WP22 Buttweld Fittings, Alloy Steel ASTM A234 WP22 Pipe Fittings, Alloy Steel WP22 Pipe Fittings, Alloy Steel WP22 Buttweld Fittings in Mumbai, Ahmedabad, Pune, Chennai, India, Peru, UAE, UK, Denmark, Nigeria, Oman, Ecuador, Chile.

Other Names: Allow Steel ASTM A234 WP22, SA 234 WP22

Material: Allow Steel ASTM A234 WP22

Brand: Fitwel Industries LLP

Manufacturer: Fitwel Industries LLP

Suppliers & Exporter: Fitwel Industries LLP

Rating: 4.3/5 based on 68 customer reviews


ASTM A234 F22 Alloy Steel Pipe Fittings

Seamless/ Welded 100% Radiography Tested

Products Size
ASTM A234 F22 Alloy Steel Elbow – Long Radius ASTM A234 F22 Alloy Steel Stub Ends Sizes 1/2″ – 48″
ASTM A234 F22 Alloy Steel Elbow – Short Radius ASTM A234 F22 Alloy Steel Cross
ASTM A234 F22 Alloy Steel Reducing Elbow ASTM A234 F22 Alloy Steel Reducing Cross
ASTM A234 F22 Alloy Steel 45° Elbow ASTM A234 F22 Alloy Steel Tees
ASTM A234 F22 Alloy Steel Fabricated Tee ASTM A234 F22 Alloy Steel End Cap
ASTM A234 F22 Alloy Steel Reducer ASTM A234 F22 Alloy Steel Seamless Fittings
ASTM A234 F22 Alloy Steel Concentric Reducer ASTM A234 F22 Alloy Steel Pipe Nipple
ASTM A234 F22 Alloy Steel Eccentric Reducer ASTM A234 F22 Alloy Steel 5D Elbow
ASTM A234 F22 Alloy Steel 3D Elbow ASTM A234 F22 Alloy Steel Welded Pipe Fittings

Types Of Alloy Steel Buttweld Pipe Fittings


Chemical Composition of Grade F22 Alloy Steel Butt weld Fittings

Grade C Mn Si S P Cr Mo
A234 F22 ≤0.15 ≤0.6 ≤0.5 ≤0.04 ≤0.03 4-6 0.44-0.65

Mechanical Properties of ASTM A234 Alloy Steel F22 Butt weld Pipe Fittings

Grade Tensile Strength (Mpa) Yield Strength (Mpa) Elongation %
A234 F22 415 - 585 ≥205 ≥20

ASTM A234 F22 Alloy Steel Buttweld Fittings Available Types

Alloy Steel F22 Pipe Fittings Alloy Steel F22 Buttweld Pipe Fittings
Alloy Steel F22 Seamless Pipe Fittings Alloy Steel F22 Welded Pipe Fittings
Alloy Steel A234 F22 Pipe Elbow Alloy Steel 5Cr-1/2Mo Buttweld Tee
Chrome Moly F22 Buttweld Reducer Suppliers ANSI F22 Alloy Steel Pipe Fittings
Chrome Moly A234 F22 Stubends Dealer ASTM A234 F22 Pipe Fittings Exporter
Alloy Steel F22 Butt weld Fittings Stockholder Steel F22 Pipe End Cap Distributors
Alloy Steel F22 45deg.Elbow A234 F22 90deg. LR Elbow Manufacturer
Alloy Steel Grade F22 Pipe Tee Alloy Steel ASTM A234 F22 Cross
Alloy Steel F22 Buttweld Reducing Nipple Alloy F22 Short Radius Elbow
ANSI B16.9 ASTM A234 F22 Buttweld Fitting A234 F22 End Pipe Cap Stockist
ASTM A234 F22 Welded Pipe Fittings Alloy Steel ASME SA234 F22 Pipe Fittings

Alloy Steel F22 Buttweld Pipe Fittings Application

ASTM A234 F22 Alloy Steel Pipe Fittings are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of ASTM A234 F22 Alloy Steel Buttweld Pipe Fittings through a worldwide network of stock-keeping branches. These ASTM A234 F22 Buttweld Fittings is use in various industries like :

  • Alloy Steel F22 Buttweld Pipe Fitting uses in Oil and Gas Pipeline
  • ASTM A234 F22 Buttweld Pipe Fittings uses in Chemical Industry
  • Grade F22 Alloy Steel Pipe Fittings uses in Plumbing
  • Alloy Steel ASTM A234 F22 Buttweld Pipe Fittings uses in Heating
  • ASTM A234 F22 Pipe Fittings uses in Water Supply Systems
  • ASTM A234 F22 Alloy Steel Buttweld Fittings uses in Power Plant
  • Alloy Steel F22 Butt weld Pipe Fittings uses in Paper & Pulp Industry
  • F22 Alloy Steel Buttweld Pipe Fittings uses in General Purpose Applications
  • ASME SA234 Alloy Steel F22 Pipe Fittings uses in Fabrication Industry
  • Alloy Steel F22 Buttweld Fittings uses in Food Processing Industry
  • Alloy F22 Buttweld Pipe Fittings uses in Structural Pipe
