Beginning as a trading house in 1980 and expanding to a fully standardised, modern and dynamic company, we, Fit-Wel Industries LLP. have redefined product delivery and customer service through our expeditious shipping service and assistance to our customer at every step. We are manufacturers, suppliers and exporters of Eccentric Reducers that attach together unequal diameter pipes and have their edges parallel to the connecting pipes. The diameter of the upstream side of the fitting is larger than the downstream side, thereby avoiding air bubbles in a pipeline. These Stainless Steel Eccentric Reducer have high utility as they can fix pipes of different diameter sizes quickly. Our ANSI B16.9 Eccentric Reducers can withstand vibration and have a unique, heat insulation design, with major uses in the pharmaceutical and chemical industry. Fitwel Industries LLP trades a wide range of Eccentric Reducers, which are used same as other alloys, but can be used at elevated temperatures. Alloy Steel Eccentric Reducers is a stabilized austenitic chromium-nickel Alloy steel containing molybdenum. Alloy Steel Eccentric Reducers are used for several applications such as in Pulp and Paper Equipment, Heat exchangers, Propeller shafts, Fittings, Dyeing Equipment, Exterior Architectural components in Marine Coastal Areas. Alloy Steel Eccentric Reducers are used for several applications such as in Food preparation equipment, especially in chloride environments. Alloy Steel Eccentric Reducers are also used in Chemical processing, equipment; Laboratory benches and equipment; Pollution control equipment; Boat fittings, value and pump trim and more. Alloy Eccentric Reducers are as well used in Heat exchangers; Condensers, evaporators and tanks; Pharmaceutical and textile industries; etc. Inconel Alloy Eccentric Reducers are used for a lot of applications such as in Laboratory benches & equipment; Coastal architectural panelling, railings & trim; Boat fittings; Chemical containers, including for transport, etc.
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : 1/2"NB TO 48"NB IN
Type : Seamless / ERW / Welded / Fabricated
Thickness : Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Form : Eccentric Reducer, Pipe Reducer, Pipe Eccentric Reducers, Fitting Eccentric Reducers.

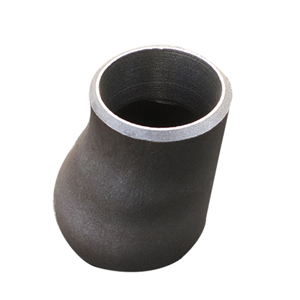

Alloy Steel Buttweld Eccentric Reducer :
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
NPS | O.D. D |
O.D. D1 |
Len H |
3/4-1/2 | 26.7 | 21.3 | 38 |
1-1/2 | 33.4 | 21.3 | 51 |
1-3/4 | 33.4 | 26.7 | 51 |
1¼-1/2 | 42.2 | 21.3 | 51 |
1¼-3/4 | 42.2 | 26.7 | 51 |
1¼-1 | 42.2 | 33.4 | 51 |
1½-1/2 | 48.3 | 21.3 | 64 |
1½-3/4 | 48.3 | 26.7 | 64 |
1½-1 | 48.3 | 33.4 | 64 |
1½-1¼ | 48.3 | 42.2 | 64 |
2-3/4 | 60.3 | 26.7 | 76 |
2-1 | 60.3 | 33.4 | 76 |
2-1¼ | 60.3 | 42.2 | 76 |
2-1½ | 60.3 | 48.3 | 76 |
Nominal Pipe Size | 1/2 to 2½ | 3 to 3½ | 4 | 5 to 8 |
Outside Diameter at Bevel (D) |
+ 1.6 - 0.8 |
1.6 | 1.6 | + 2.4 - 1.6 |
Inside Diameter at End | 0.8 | 1.6 | 1.6 | 1.6 |
Overall Length (H) | 2 | 2 | 2 | 2 |
Nominal Pipe Size | 10 to 18 | 20 to 24 | 26 to 30 | 32 to 48 |
Outside Diameter at Bevel (D) |
+ 4 - 3.2 |
+ 6.4 - 4.8 |
+ 6.4 - 4.8 |
+ 6.4 - 4.8 |
Inside Diameter at End | 3.2 | 4.8 | + 6.4 - 4.8 |
+ 6.4 - 4.8 |
Overall Length (H) | 2 | 2 | 5 | 5 |
Wall Thickness (t) | Not less than 87.5% of Nominal Wall Thickness |
Dimensional tolerances are in millimeters unless otherwise indicated and are equal ± except as noted.
Buttweld Alloy Steel Eccentric Reducer | Butt Weld Pipe Reducers |
ASME B16.9 Butt weld Alloy Steel Eccentric Reducer | Steel Reducer Pipe Fittings |
Alloy Steel Eccentric Reducer Suppliers | SS Alloy Steel Eccentric Reducers |
ANSI B16.9 Buttweld Alloy Steel Eccentric Reducer Dealer | ASME B16.28 Buttweld Alloy Steel Eccentric Pipe Reducer Exporter |
Welded Buttweld Alloy Steel Eccentric Reducer Stockholder | Seamless Buttweld Alloy Steel Eccentric Reducer Distributors |
ASME B16.9 Alloy Steel Eccentric Reducer are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of Alloy Steel Eccentric Reducer through a worldwide network of stock-keeping branches. These Buttweld Alloy Steel Eccentric Reducer is use in various industries like:
We are renowned & most acclaimed Source Manufacturer, Suppliers & Exporter And Stockist of Buttweld Alloy Steel Eccentric Reducer available in Alloy Steel & Alloy Steel Material.
For More Information About Buttweld Alloy Steel Eccentric Reducer Please Call 91-22-2382 9256 or Send an Email to sales@fitwelindia.com
