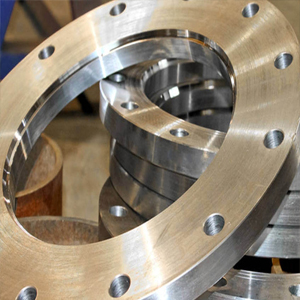

Plate Flanges Manufacturer, Supplier & Exporter in Mumbai, India

ASME B16.9 Buttweld Equal Tee

Fitwel Industries LLP is a dominant and expert manufacturer of high quality ASME/ANSI/DIN standard plate flanges in India. We offer immediate delivery programs for standard size of carbon steel plate flanges and stainless steel plate flanges. Plate flanges can be manufactured as per custom size requirements of our customers.We are also known as plate flange supplier with high quality raw material in various sizes. Plate flanges are manufactured from plated produced in accordance to the ASTM A240 and ASME SA240 standards. Plate flanges are widely accepted as an alternative to cast or forged flanges in low pressure applications because of the benefits listed below.

Fitwel Industries LLP is Govt. recognized Plate Flange Manufacturers in India. Fitwel Industries LLP is the quickest developing manufacturer of Din Plate Flange endorsed by Saudi Aramco. We are the biggest stockholder of ANSI B16.5 Class 150 Plate Flanges. We are the biggest exporter of Flat-Faced Plate Flanges, Stainless Steel Plate Flanges in different sizes.
Purchase from our ready stock ANSI B16.5 Plate Flanges at best cost in India, discover our cost of ASME B16.5 Plate Flanges counting ASME B16.47 Series A and B Plate Flanges, Nickel Alloy 200 Plate Flange and ASTM A182 SS Plate Flange. We are advertising Alloy Steel Plate Plate Flanges, MSS SP-44 Plate Flanges, DIN86029 PN10 Plate Flanges & Duplex Steel Plate Flanges at Factory cost due to sensible man-hours in India and a beat source of high-quality Copper Nickel Plate Flanges at best cost accessible in Mumbai, India.

Advantages of Plate Flanges

  • Free of any defects
  • Superior grain structure compared to forged or cast products
  • Extended service life
  • Reduction of the normal maintenance costs
  • Plate flanges are most widely used in fuel and water pipelines, where two flange plates are bolted together with a gasket in between them. The flange plate will have bolt holes all around the perimeter and will be used to create junctions, tees and joints.

  • ASME B16.5 Orifice Flanges Specification :

    Standard : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings

    Size : 1/2" (15 NB) to 48" (1200NB)

    Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.

    Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

    BS : BS4504 , BS4504, BS1560, BS10

    DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673


    ANSI B16.47 Orifice Flanges Material & Grades:

    Stainless Steel Orifice Flanges : ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L

    Duplex & Super Duplex Steel Orifice Flanges : ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61, 2205 (UNS No. S31803), 2507 (UNS No. S32750)

    Carbon Steel Orifice Flanges : ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F70, ASTM A350, LF2, LF3

    Alloy Steel Orifice Flanges : ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91

    Nickel Alloy Orifice Flanges :ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020).

    Copper Alloy Steel Orifice Flanges : UNS No. C 10100, 10200, 10300, 10800, 12000, 12200, 70600, 71500, UNS No. C 70600 (Cu -Ni- 90/10), C 71500 (Cu -Ni- 70/30)


    All Classes Dimensions of Plate Flanges

    Slip On Flanges

    NPS DIA
    D3
    L N P T
    1/2 13 0.24 1.5 30 1.5
    3/4 19 0.34 1.5 30 1.5
    1 25 0.42 2 30 2
    40 0.64 3 30 3
    2 51 1 6 30 3
    3 76 1.5 8 40 3
    4 102 1.5 10 40 5
    6 152 1.5 15 40 5
    8 202 3.5 15 40 7
    10 253 3.5 19 45 7
    12 302 3.5 20 45 10
    14 341 6 20 45 10
    16 392 6 21 50 11
    18 443 8 23 50 13
    20 494 8 25 50 16
    24 595 10 29 60 18
    NPS ASME B16.5 Flange Class
    150 300 600 900 1500 2500
    S
    1/2 110 110 110 115 115 120
    3/4 110 110 110 115 115 120
    1 110 115 115 120 120 125
    110 120 120 125 125 130
    2 110 115 115 125 125 130
    3 115 120 120 125 135 140
    4 115 125 125 130 140 150
    6 115 120 130 135 145 170
    8 120 125 135 145 155 170
    10 120 130 145 145 165 190
    12 125 135 140 145 165 195
    14 130 140 145 150 175
    16 130 145 150 155 180
    18 130 145 155 160 195
    20 135 150 155 165 205
    24 135 160 165 190 2205
    NPS ASME B16.5 Flange Class
    150 300 600 900 1500 2500
    DIA
    D4
    1/2 48 54 54 64 64 70
    3/4 57 67 67 70 70 77
    1 67 73 73 80 80 86
    86 96 96 99 99 118
    2 105 111 111 143 143 146
    3 137 149 149 168 175 197
    4 175 181 194 206 209 235
    6 222 250 266 289 282 317
    8 279 307 320 358 352 387
    10 339 361 399 434 434 475
    12 409 422 456 497 520 549
    14 450 485 491 519 577
    16 513 539 564 573 640
    18 548 596 611 637 703
    20 605 653 681 697 754
    24 716 773 789 836 899

    Tolerances

    D1 & D2 = ± 1%
    D3 = ± 1 mm
    D4 = 0/-0.4 mm
    L = ± 0.1 mm
    N = see note 6
    P = ± 0.1 mm
    S = ± 0.1 mm
    T = see note 2
    Notes:
    1. Marking
      The Upstream side of the orifice tab shall be stamped at the indicated locations with:
      - the word UPSTREAM
      - the Tag Number
      - the ASME flange class, followed by RF
      - the nominal pipe size (NPS)
      - the measured orifice D1 (in mm)
      - the material of the Plate
      - the type of Plate (Square, Restriction etc.)
      Letter height approx. 4 mm
    2. Welding of tab
      Tab may be integral with Plate up to and including 7 mm plate thickness.
      In other cases full penetration joint to be applied.
    3. Finish of plate
      The upstream and downstream faces of the Plate to a diameter equal to D3 shall have a surface roughness Ra ≤ 0.8 µm ASME B46.1.
      The remaining annular part (between D4 & D3) of upstream and downstream faces shall have a surface roughness Ra between 3.2 and 3.6 µm ASME B46.1. This finish shall be obtained by machining with a round nosed cutting tool having a 0.8 mm radius at a feed rate between 0.35 and 0.45 mm per revolution.
    4. Concentricity
      The centre of the orifice shall not differ from the centre of the plate by more than 0.1 mm for ≤ NPS 8 and 0.2 mm for > NPS 8.
    5. Finish of throat
      The throat and outlet cone shall have a surface roughness Ra ≤ 0.4 µm ASME B46.1.
      All edges shall be sharp and free from burrs, so that when viewed with the naked eye no light is reflected by the corners.
    6. Plate thickness
      The difference between any two measurements of plate thickness, for annular part D1-D3, shall not differ by more than 0.001 DN in mm.
      The plate shall not depart from flatness along any diameter by more than 0.01 D3.
      Tolerance for N shall be:
      N ≤ 6 mm +0.1/-0.25 mm
      N > 6 mm +0/-1.5 mm
      Thickness for annular part D3-D4, may be slightly less, max 0.05 mm, due to surface finishing difference between D1-D3 & D3-D4. (see note 3)
    General notes:

  • Dimensions are in millimeters unless otherwise indicated.
  • Allowable pressure difference 20 bar for temperatures up to 400 °C and D1/D3 ≥ 0.1. The thickness of the plate needs to be verified for strength in case the pressure difference is higher than 20 bar and/or the temperature is beyond 400 °C. Based on the outcome of the calculation the thickness of the plate needs to be adjusted.
  • DIA D1 & DIA D2 - to be specified by purchaser.
  • Material to be specified by purchaser.


  • Call@ 9987994248. India's leading Exporter, Manufacturer, and Supplier of Premium Quality AISI/ ANSI/ASME B16.5 Plate Flanges. EN 1092-2 PN16 Plate Flanges in India, Mumbai, Ahmedabad, Chennai, Pune & so on. MSS SP-44 Bsp Plate Flanges dimensions and price in Mumbai.

    Other Names: ANSI B16.5 Plate Flanges, Plate Flanges Class 150, Plate Flanges Class 300

    Material: Stainless Steel, Carbon Steel, Duplex & Super Duplex Steel, High Nickel Alloy, Hastelloy & Titanium

    Brand: Fitwel Industries LLP

    Manufacturer: Fitwel Industries LLP

    Suppliers & Exporter: Fitwel Industries LLP

    Rating: 4.2/5 based on 611 customer reviews

    ASME B16.9 Stainless Steel Plate Available Types

    Plate Flanges Manufacturer in India Plate Flanges Manufacturer
    ASME B16.9 Plate Flanges Stainless Steel Plate Plate Flanges
    Forged Plate Flanges Suppliers Stainless Steel Plate Plate Flanges
    ANSI B16.9 Plate Flanges Dealer ASME B16.28 Plate Flanges Exporter
    Carbon Steel Plate Flanges High Quality Plate Flanges Manufacturer
    ASTM A403 Alloy Steel Plate Flanges Duplex Steel Plate Flanges
    Super Duplex Steel Plate Flanges Copper Nickel Plate Flanges
    High Nickel Alloy Plate Flanges Hastelloy Plate Flanges
    Titanium Plate Flanges Inconel Plate Flanges

    Plate Flanges Application

    ASME B16.9 Plate Flanges are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of Plate Flanges through a worldwide network of stock-keeping branches. These Plate & Forged Flanges is used in various industries like:

  • Plate Flanges For Oil & Gas Industries
  • Plate Flanges For Petrochemical Industries
  • Plate Flanges For Engineering Industries
  • Plate Flanges For Chemical Industries
  • Plate Flanges For Sugar Industries
  • Plate Flanges For Power Generation Industries
  • Plate Flanges For Fertilizers Industries
  • Plate Flanges For Food Processing Industries
  • Plate Flanges For Polymer Industries
  • Plate Flanges For Dairy Industries
  • Plate Flanges For Bio-Pharma Industries
  • We are renowned & most acclaimed Manufacturers, Suppliers & Exporter And Stockist of Plate Flanges in Stainless Steel & Carbon Steel And Alloy Steel & High nickle Alloy.
