Alloy Steel Blind Flanges Manufacturers & Exporter Mumbai, India

PED Approved Alloy Steel Blind Flanges Manufacturer & Suppliers

PED Certified Alloy Steel Blind Flanges Manufacturer & Suppliers

ASME B16.9 Buttweld Equal Tee

Fitwel Industries LLP is one of the leading Blind Flange Manufacturers in India and exporters of a wide range of industrial Alloy Steel Blind Flange. These ASME B16.5 Alloy Steel Blind Flange are designed in accordance with industry standards and are fabricated using quality material. Alloy Steel Blind Flange is known for excellent performance, resistance against corrosion, and durability. These ANSI B16.47 BLRF Flanges meet the requirements of various industries like automobile, heavy engineering, railways, and pipeline engineering. Available in standard specifications, our flanges range can also be customized as per the requirements of our clients.
We at Fitwel Industries LLP would like to take the opportunity to introduce us as a leading Alloy Steel Blind Flange Manufacturers in India. Alloy Steel Blind Flange is stocked or available in the following range of materials and sizes for the oil, gas, petrochemical, and allied industries. Pipes with Blind Flange can be assembled and disassembled easily. Alloy Blind Flange can be forged or plate.

What is Alloy Steel BLRF flange?

These flat face Alloy Steel BLRF Flange are used to blank off pipelines, valves, and pumps, it can also be used as an inspection cover. A Alloy Steel Blind flange is used to close ends of piping systems. These Alloy Steel BLRF Flanges is available in various size, grades, Specification & thickness as per the client's requirements.

What is Alloy Steel Blind flanges?

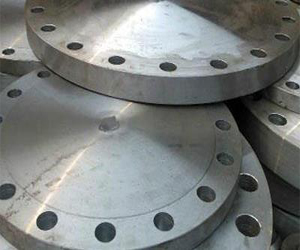

A Alloy Steel Blind flanges is a solid flange as shown below. The purpose of these is to block off a section of pipe or a nozzle on a vessel that is not used. (A nozzle is typically a pipe coming out of a vessel and is usually flanged so it can be connected to valves or piping).
Many times a nozzle will be blanked off with a Alloy Steel Blind flange for pressure tests in a plant, or simply because the customer does not need all the nozzles that were supplied on the tank.

ASME B16.5 Alloy Steel Blind Flanges Specification :

Standard :ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings

Size : 1/2" (15 NB) to 48" (1200NB)

Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.

Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

BS : BS4504 , BS4504, BS1560, BS10

DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673


ANSI B16.47 Alloy Steel Blind Flanges Material & Grades:

Alloy Steel Blind Flanges : ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91


All Classes Dimensions of Alloy Steel Blind Flanges

Slip On flange
NPS 1/2
CLass 150 300 600 900 1500 2500
DIA
D
90 95 95 120 120 135
B 9.6 12.7 14.3 22.3 22.3 30.2
11.2 14.3 20.7 28.7 28.7 36.6
DIA
G
35.1 35.1 35.1 35.1 35.1 35.1
DIA
K
60.3 66.7 66.7 82.6 82.6 88.9
NO.
L
4 4 4 4 4 4
DIA
L
15.9 15.9 15.9 22.2 22.2 22.2
Stud Bolts Diameter x Length
DIA
(in)
1/2 1/2 1/2 3/4 3/4 3/4
Len
mm
55 65 75 110 110 120
Other Diameters
NPS 3/4 1 2
3 4 6 8 10 12
14 16 18 20 24

Notes:

  • Dimensions are in millimeters unless otherwise indicated.
  • The length of the Stud Bolt does not include the height of the chamfers (points).

  • Call@ 9987994248. Find here India's top Alloy Steel Blind Flanges supplier and as well as Manufacturer & exporter of ASME/ANSI B16.5 Alloy Steel Blind Flanges & Alloy Steel BLRF Flanges Class 150 for industrial purposes in Mumbai, Pune, Chennai, Ahmedabad.

    Other Names: ANSI B16.5 Alloy Steel Blind Flanges, Alloy Steel BLRF Flanges, Alloy Steel Blind Flange Class 150, Alloy Steel BLRF Flange Class 150

    Material: Alloy Steel

    Brand: Fitwel Industries LLP

    Manufacturer: Fitwel Industries LLP

    Suppliers & Exporter: Fitwel Industries LLP

    Rating: 4.2/5 based on 722 customer reviews

    ASME B16.9 Alloy Steel Blind Available Types

    Alloy Steel Blind Flanges Manufacturers in India SS BLRF Raised Face Flanges
    ASME B16.9 Alloy Steel Blind Flanges Alloy Steel Plate Blind Flanges
    Alloy Steel Forged Blind Flanges Suppliers Alloy Steel Plate Steel Blind Flanges Manufacturers
    ANSI B16.9 Alloy Steel Blind Flanges Dealer ASME B16.28 Alloy Steel Blind Flanges Exporter

    Alloy Steel Blind Flanges Application

    ASME B16.9 Alloy Steel Blind are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of Alloy Steel Blind Flanges through a worldwide network of stock-keeping branches. These Plate & Forged Alloy Steel Blind is used in various industries like:

  • Alloy Steel Blind Flanges For Oil & Gas Industries
  • Alloy Steel Blind Flanges For Petrochemical Industries
  • Alloy Steel Blind Flanges For Engineering Industries
  • Alloy Steel Blind Flanges For Chemical Industries
  • Alloy Steel Blind Flanges For Sugar Industries
  • Alloy Steel Blind Flanges For Power Generation Industries
  • Alloy Steel Blind Flanges For Fertilizers Industries
  • Alloy Steel Blind Flanges For Food Processing Industries
  • Alloy Steel Blind Flanges For Polymer Industries
  • Alloy Steel Blind Flanges For Dairy Industries
  • Alloy Steel Blind Flanges For Bio-Pharma Industries


  • Coutries & Cities We Serve


    We are renowned & most acclaimed Manufacturers, Suppliers & Exporter And Stockist of Alloy Steel BLRF/Blind Flanges in Alloy Steel.

    For More Information About, plate or forged Alloy Steel Blind Please Call 91-22-2382 9256 or Send an Email to sales@fitwelindia.com
