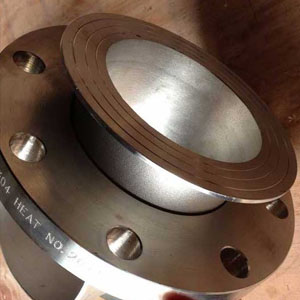

Duplex Steel Lap Joint Stub Ends Manufacturer & Suppliers in Mumbai, India

ASME B16.9 Buttweld Lap Joint Stub End

As an experienced manufacturer, Fitwel Industries LLP are a highly equipped industry that is always producing and supplying these high-grade Duplex Steel Lap Joint Stub Ends with the fullest efforts and dedication. The products that we provide to our customers are developed by effectively using the superior quality of raw material collected from reliable market mills. At the time of ASME B16.9, Duplex Steel Lap Joint Stub Ends to produce the alloy used were inspected by our well-trained experts to make sure that no bad quality of products is developed.
We are the largest stockist of Duplex Steel Lap Joint Stub End that are produced on a large scale at our vast in-house manufacturing unit. We have been providing trustworthy piping solutions for the past three decades. Super Duplex Steel Lap Joint Stub End is a type of stub end that is customarily used with lap joint flanges, the stub end forming the face of the flange. Applications where constant disconnection and dismantling of pipes is needed are benefitted through these fittings as they give a quick disassembly, allowing inspection adn cleaning of pipelines.

The use of available refined technology and tools has helped our company add greater strength to the quality offer high-quality Duplex Steel Lap Joint Stub Ends. The ASME B16.9 Duplex Steel Lap Joint Stub Ends are testing the products under destructive and non-destructive is done with the precise cut aim of supplying the high quality. We pack and label our products for safer and more smooth delivery. We offer ANSI B16.9 Lap Joint Stub Ends that are corrosion resistant besides being reusable and economical, to the petrochemical, fertilizers, power generation, nuclear plants, etc.

What is Duplex/Super Duplex Steel Lap Joint Stub Ends?

Lap Joint Stub Ends manufacturer India are mechanical joints that comprises of two components: The Stub End, which essentially a short length of pipe, which has one end that is flared outwards and the other end prepared to be welded to pipe of the same Nominal Pipe Size (NPS), material and of a similar wall thickness.


Types Of Duplex/Super Duplex Steel Lap Joint Stub Ends

There are mainly two types of Sub Ends i.e. (i)Short Lap Joint Stub Ends & (ii)Long Lap Joint Stub Ends

Duplex/Super Duplex Steel Short Lap Joint Stub Ends

We are a premium manufacturer of high-quality range of ANSI/ASME B16.9 Duplex/Super Duplex Steel Short Lap Joint Stub Ends these are manufactured under the expert guidance of our experienced team. We believe in building a relationship with the client by offering the best quality product at a reasonable price. We ensure that all the products deliver on time with great service. This Short Stub End has amazing features such as sturdy, durable, and corrosion resistance. We supply the best product that is ANSI/ASME B16.9 Duplex/Super Duplex Steel Short Stub End of varied size and standard.

Duplex/Super Duplex Steel Long Lap Joint Stub Ends

We are a premium manufacturer of high-quality range of ANSI/ASME B16.9 Duplex/Super Duplex Steel Long Stub End that is manufactured in all standard dimensions. Our high-quality Long Stub End Butt weld pipe fittings are tested and verified for durability, accuracy, and precision. We are the provider of Duplex/Super Duplex Steel Long Stub End that are used for connecting pipes of different diameters and find wide applications in various chemicals, construction industries, paper, cement & shipbuilders. Long Lap Joint Stub Ends are introduced in pairs and mated together with two Stubends. The surface of the stub end has a phonographic serrated gasket surface which prevents outflow at the joint.


Dimensions Duplex/Super Duplex Steel Lap Joint Stub Ends Schedule 10S MSS SP-43 type A/B

Duplex/Super Duplex Steel Lap Joint Stub Ends
NPS OD T G F R
Type A
R
Type B
1/2 21.3 2.11 34.9 50.8 3.05 0.76
3/4 26.7 2.11 42.9 50.8 3.05 0.76
1 33.4 2.77 50.8 50.8 3.05 0.76
42.2 2.77 63.5 50.8 4.83 0.76
48.3 2.77 73 50.8 6.35 0.76
2 60.3 2.77 92.1 63.5 7.87 0.76
73 3.05 104.8 63.5 7.87 0.76
3 88.9 3.05 127 63.5 9.65 0.76
101.6 3.05 139.7 76.2 9.65 0.76

Dimensions Tolerance of Duplex/Super Duplex Steele Lap Joint Stub Ends MSS SP-43

Nominal Pipe Size 1/2 up to 2½ 3 to 3½ 4 5 to 8 10 to 18 20 to 24
Outside Diameter at Welding End (OD) 0.8 0.8 0.8 + 1.6
- 0.8
+ 2.29
- 0.76
+ 3.05
- 0.76
Overall Length (F) 1.6 1.6 1.6 1.6 2 2
Outside Diameter of Lap (G) + 0
- 0.76
+ 0
- 0.76
+ 0
- 0.76
+ 0
- 0.76
+ 0
- 1.6
+ 0
- 1.6
Thickness of Lap (T) + 1.52
- 0
+ 1.52
- 0
+ 1.52
- 0
+ 1.52
- 0
+ 1.52
- 0
+ 1.52
- 0
Fillet Radius of Lap (R) + 0
- 0.76
+ 0
- 0.76
+ 0
- 1.6
+ 0
- 1.6
+ 0
- 1.6
+ 0
- 1.6
Wall Thickness (t) Not less than 87.5% of Nominal Wall Thickness

Dimensional tolerances are in millimeters unless otherwise indicated.


Standard Specification For Duplex/Super Duplex Steel Stub End


Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

Size : 1/2"NB TO 36 "NB IN

Type : Seamless / ERW / Welded / Fabricated

Thickness : Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.

Form : Lap Joint Stub Ends, Pipe Lap Joint Stub Ends, Butt weld Lap Joint Stub Ends.


Material & Grades of Duplex/Super Duplex Steel Stub End :

Duplex & Super Duplex Steel Buttweld Lap Joint Stub End :
ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werkstoff No. 1.4462


ASME B16.9 Duplex/Super Duplex Steel Stub End Available Types

Duplex/Super Duplex Steel Stub End Butt Weld Lap Joint Stub Ends
ASME B16.9 Butt weld Stub End Steel Lap Joint Stub Ends Fittings
Duplex/Super Duplex Steel Stub End Suppliers SS Duplex/Super Duplex Steel Lap Joint Stub Ends Fitting
ANSI B16.9 Duplex/Super Duplex Steel Stub End Dealer ASME B16.28 Duplex/Super Duplex Steel Lap Joint Stub Ends Exporter
Welded Butt weld Lap Joint Stub Ends Stockholder Seamless Butt weld Stub End Distributors


Call@ 09987994248. Find here online the ISO certified manufacturers, exporter & suppliers of Super Duplex UNS s32760/s32250 Stee Lap joint Stub End, Duplex Stainless Steel Lap joint Stub End, Duplex UNS S31803/s2205 Steel Lap joint Stub End, Super Duplex Stainless Steel Lap joint Stub End in Mumbai, Pune, Chennai, Ahmedabad, India.

Other Names: Long Stub End, Short Stub End

Material: Duplex/Super Duplex Steel

Brand: Fitwel Industries LLP

Manufacturer: Fitwel Industries LLP

Suppliers & Exporter: Fitwel Industries LLP

Rating: 4.7/5 based on 1019 customer reviews

Duplex/Super Duplex Steel Lap Joint Stub Ends Application

ASME B16.9 Duplex/Super Duplex Steel Lap Joint Stub Ends are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of Duplex/Super Duplex Steel Lap Joint Stub Ends through a worldwide network of stock-keeping branches. These Duplex/Super Duplex Steel elbows is used in various industries like:

  • Duplex/Super Duplex Steel Lap Joint Stub Ends For Oil & Gas Industries
  • Duplex/Super Duplex Steel Lap Joint Stub Ends For Petrochemical Industries
  • Duplex/Super Duplex Steel Lap Joint Stub Ends For Engineering Industries
  • Duplex/Super Duplex Steel Lap Joint Stub Ends For Chemical Industries
  • Duplex/Super Duplex Steel Lap Joint Stub Ends For Sugar Industries
  • Duplex/Super Duplex Steel Lap Joint Stub Ends For Power Generation Industries
  • Duplex/Super Duplex Steel Lap Joint Stub Ends For Fertilizers Industries
  • Duplex/Super Duplex Steel Lap Joint Stub Ends For Food Processing Industries
  • Duplex/Super Duplex Steel Lap Joint Stub Ends For Polymer Industries
  • Duplex/Super Duplex Steel Lap Joint Stub Ends For Dairy Industries
  • Duplex/Super Duplex Steel Lap Joint Stub Ends For Bio-Pharma Industries


  • Coutries & Cities We Serve


    We are renowned & most acclaimed Manufacturer, Suppliers & Exporter And Stockist of Lap Joint Stub Ends in Duplex/Super Duplex Steel.

    For More Information About Duplex/Super Duplex Steel Lap Joint Stub Ends Please Call 91-22-2382 9256 or Send an Email to sales@fitwelindia.com
