Copper Nickel, Inconel, Monel 400, Alloy 20, Nickel Alloy 200/201 Stub End Manufacturer in Mumbai, India

ASME B16.9 Buttweld Lap Joint Stub End

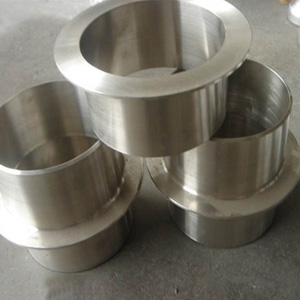

Fitwel Industries LLP is a large-scale company having experience in manufacturing and supplying these essential industrial products. Our Nickel Alloy Stub end is a very fine product that is used on a huge scale in a broad range of industrial sectors. These stub ends are available in a variety of sizes, grades, sizes, dimensions, and thicknesses. Our company has a well-set reputation in the market and offer a great deal in the domestic and global markets. We ensure that each Nickel Alloy Stub end that we manufacture is produced as per the prescribed specifications by the clients. We take care of the requirements of our clients and provide the products at a very cost-effective price.

The Stub End is a short length of pipe, which has one end that is flared outwards and the other end welded to the pipe of the same material and similar wall thickness. It is a mechanical joint that joints the outlets accurately and efficiently. We provide Stub ends in different sizes, grades that are developed using Nickel Alloy, which has good durability and excellent chemical composition. We manufacture Stub ends with superior quality raw material. Nickel has remarkable resistance to corrosion, oxidization, and many more corrosive media. Nickel is used on a greater scale because of its mechanical qualities and toughness.
Fitwel Industries LLP has a well-equipped manufacturing unit with advanced machinery to bring out excellent quality and efficient Nickel Alloy Stub Ends, Monel Stub Ends, Incoloy Stub Ends, Hastelloy Stub Ends, Titanium Stub Ends, Copper Nickel Stub Ends & more. The stub end is manufactured by our highly experienced experts and skilled workers using superior quality raw material. The fabrication of Nickel Alloy Stub end is carried out as per the international quality standards. We ensure the full safety and responsibility of the products while manufacturing them. Our stub ends goes through various tests like destructive, non-destructive, corrosion tests that derive ultimate efficiency. We have a separate packaging unit that packs the stub ends with utmost care to avoid damage. The products are stored in clean and secured warehouses. We ensure the timely and safe delivery of Nickel Alloy Stubend to the specified locations to our customers using convenient packaging and shipping methods.

What is Stub Ends?

Stub Ends manufacturer India are mechanical joints that comprises of two components: The Stub End, which essentially a short length of pipe, which has one end that is flared outwards and the other end prepared to be welded to pipe of the same Nominal Pipe Size (NPS), material and of a similar wall thickness.


Types Of Copper Nickel, Inconel, Monel 400, Alloy 20,Nickel Alloy 200/201 Stub Ends

There are mainly two types of Sub Ends i.e. (i)Short Stub Ends & (ii)Long Stub Ends

Copper Nickel, Inconel, Monel 400, Alloy 20, Nickel Alloy 200/201 Short Stub Ends

We are a premium manufacturer of high-quality range of ANSI/ASME B16.9 Copper Nickel, Inconel, Monel 400, Alloy 20,Nickel Alloy 200/201 Short Stub Ends these are manufactured under the expert guidance of our experienced team. We believe in building a relationship with the client by offering the best quality product at a reasonable price. We ensure that all the products deliver on time with great service. This Short Stub End has amazing features such as sturdy, durable, and corrosion resistance. We supply the best product that is ANSI/ASME B16.9 Copper Nickel, Inconel, Monel 400, Alloy 20,Nickel Alloy 200/201 Short Stub End of varied size and standard.

Copper Nickel, Inconel, Monel 400, Alloy 20, Nickel Alloy 200/201 Long Stub Ends

We are a premium manufacturer of high-quality range of ANSI/ASME B16.9 Copper Nickel, Inconel, Monel 400, Alloy 20,Nickel Alloy 200/201 Long Stub End that is manufactured in all standard dimensions. Our high-quality Long Stub End Butt weld pipe fittings are tested and verified for durability, accuracy, and precision. We are the provider of Copper Nickel, Inconel, Monel 400, Alloy 20,Nickel Alloy 200/201 Long Stub End that are used for connecting pipes of different diameters and find wide applications in various chemicals, construction industries, paper, cement & shipbuilders. Long Stub Ends are introduced in pairs and mated together with two Stubends. The surface of the stub end has a phonographic serrated gasket surface which prevents outflow at the joint.


Dimensions Copper Nickel, Inconel, Monel 400, Alloy 20, Nickel Alloy 200/201 Stub Ends Schedule 10S MSS SP-43 type A/B

Copper Nickel, Inconel, Monel 400, Alloy 20,Nickel Alloy 200/201 Stub Ends
NPS OD T G F R
Type A
R
Type B
1/2 21.3 2.11 34.9 50.8 3.05 0.76
3/4 26.7 2.11 42.9 50.8 3.05 0.76
1 33.4 2.77 50.8 50.8 3.05 0.76
42.2 2.77 63.5 50.8 4.83 0.76
48.3 2.77 73 50.8 6.35 0.76
2 60.3 2.77 92.1 63.5 7.87 0.76
73 3.05 104.8 63.5 7.87 0.76
3 88.9 3.05 127 63.5 9.65 0.76
101.6 3.05 139.7 76.2 9.65 0.76

Dimensions Tolerance of Copper Nickel, Inconel, Monel 400, Alloy 20,Nickel Alloy 200/201 Stub Ends MSS SP-43

Nominal Pipe Size 1/2 up to 2½ 3 to 3½ 4 5 to 8 10 to 18 20 to 24
Outside Diameter at Welding End (OD) 0.8 0.8 0.8 + 1.6
- 0.8
+ 2.29
- 0.76
+ 3.05
- 0.76
Overall Length (F) 1.6 1.6 1.6 1.6 2 2
Outside Diameter of Lap (G) + 0
- 0.76
+ 0
- 0.76
+ 0
- 0.76
+ 0
- 0.76
+ 0
- 1.6
+ 0
- 1.6
Thickness of Lap (T) + 1.52
- 0
+ 1.52
- 0
+ 1.52
- 0
+ 1.52
- 0
+ 1.52
- 0
+ 1.52
- 0
Fillet Radius of Lap (R) + 0
- 0.76
+ 0
- 0.76
+ 0
- 1.6
+ 0
- 1.6
+ 0
- 1.6
+ 0
- 1.6
Wall Thickness (t) Not less than 87.5% of Nominal Wall Thickness

Dimensional tolerances are in millimeters unless otherwise indicated.


Standard Specification For Copper Nickel, Inconel, Monel 400, Alloy 20,Nickel Alloy 200/201 Stub End


Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

Size : 1/2"NB TO 36 "NB IN

Type : Seamless / ERW / Welded / Fabricated

Thickness : Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.

Form : Stub Ends, Pipe Stub Ends, Butt weld Stub Ends.


Material & Grades of Copper Nickel, Inconel, Monel 400, Alloy 20,Nickel Alloy 200/201 Stub End :

Nickel Alloy Buttweld Lap Joint Stub End :
ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe.


ASME B16.9 Copper Nickel, Inconel, Monel 400, Alloy 20,Nickel Alloy 200/201 Stub End Available Types

Copper Nickel, Inconel, Monel 400, Alloy 20,Nickel Alloy 200/201 Stub End Butt Weld Stub Ends
ASME B16.9 Butt weld Stub End Steel Stub Ends Fittings
Copper Nickel, Inconel, Monel 400, Alloy 20,Nickel Alloy 200/201 Stub End Suppliers SS Copper Nickel, Inconel, Monel 400, Alloy 20,Nickel Alloy 200/201 Stub Ends Fitting
ANSI B16.9 Copper Nickel, Inconel, Monel 400, Alloy 20,Nickel Alloy 200/201 Stub End Dealer ASME B16.28 Copper Nickel, Inconel, Monel 400, Alloy 20,Nickel Alloy 200/201 Stub Ends Exporter
Welded Butt weld Stub Ends Stockholder Seamless Butt weld Stub End Distributors


Call@ 09987994248. Find here online a quality Inconel 600/601/625/825 Stub End, Copper Nickel Stub End, cupro-nickel 90/10 & 70/30 Long Stub End & Short Stub End, UNS 4400 buttweld Stub End, Monel 400/k500 Long Stub End & Short Stub End, Nickel Alloy 200/201Stub End manufacturers, exporter & suppliers in Mumbai, Pune, Chennai, India.

Other Names: Long Stub End, Short Stub End

Material: Copper Nickel, Inconel, Monel 400, Alloy 20, Nickel Alloy 200/201 & High Nickel Grade

Brand: Fitwel Industries LLP

Manufacturer: Fitwel Industries LLP

Suppliers & Exporter: Fitwel Industries LLP

Rating: 4.7/5 based on 1011 customer reviews

Copper Nickel, Inconel, Monel 400, Alloy 20, Nickel Alloy 200/201 Stub Ends Application

ASME B16.9 Copper Nickel, Inconel, Monel 400, Alloy 20,Nickel Alloy 200/201 Stub Ends are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of Copper Nickel, Inconel, Monel 400, Alloy 20,Nickel Alloy 200/201 Stub Ends through a worldwide network of stock-keeping branches. These Copper Nickel, Inconel, Monel 400, Alloy 20,Nickel Alloy 200/201 elbows is used in various industries like:

  • Copper Nickel, Inconel, Monel 400, Alloy 20,Nickel Alloy 200/201 Stub Ends For Oil & Gas Industries
  • Copper Nickel, Inconel, Monel 400, Alloy 20,Nickel Alloy 200/201 Stub Ends For Petrochemical Industries
  • Copper Nickel, Inconel, Monel 400, Alloy 20,Nickel Alloy 200/201 Stub Ends For Engineering Industries
  • Copper Nickel, Inconel, Monel 400, Alloy 20,Nickel Alloy 200/201 Stub Ends For Chemical Industries
  • Copper Nickel, Inconel, Monel 400, Alloy 20,Nickel Alloy 200/201 Stub Ends For Sugar Industries
  • Copper Nickel, Inconel, Monel 400, Alloy 20,Nickel Alloy 200/201 Stub Ends For Power Generation Industries
  • Copper Nickel, Inconel, Monel 400, Alloy 20,Nickel Alloy 200/201 Stub Ends For Fertilizers Industries
  • Copper Nickel, Inconel, Monel 400, Alloy 20,Nickel Alloy 200/201 Stub Ends For Food Processing Industries
  • Copper Nickel, Inconel, Monel 400, Alloy 20,Nickel Alloy 200/201 Stub Ends For Polymer Industries
  • Copper Nickel, Inconel, Monel 400, Alloy 20,Nickel Alloy 200/201 Stub Ends For Dairy Industries
  • Copper Nickel, Inconel, Monel 400, Alloy 20,Nickel Alloy 200/201 Stub Ends For Bio-Pharma Industries


  • Coutries & Cities We Serve


    We are renowned & most acclaimed Manufacturer, Suppliers & Exporter And Stockist of Stub Ends in Copper Nickel, Inconel, Monel 400, Alloy 20, Nickel Alloy 200/201.
