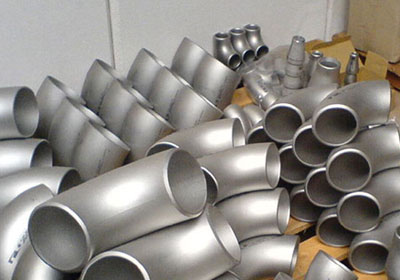

Fitwel Industries LLP is a leading exporter and supplier of Monel Buttweld Fittings. They are manufactured by using superior quality of raw material for the satisfaction of the customers. These fittings are offered in customisable sizes as per the client requirements. ASME B 16.9 Monel Buttweld Fittings is a nickel- copper alloy with great strength and exceptional resistance to corrosion in a range of media especially sea water, hydrofluoric acid, sulphuric acid and alkalis. ASTM B366 Monel UNS N04400 Reducer is the component in the pipeline that reduces the pipe size from a larger to a smaller bore. ANSI B16.28 Monel UNS N05500 Pipe Elbow works in a wide range of temperatures and has exceptionally good dimensional stability. ASME SB366 Monel K500 Seamless Buttweld Fittings are used to combine or divide fluid flow. ANSI B 16.28 Monel K500 Cap Fittings are used to shut down the end of the pipe. Monel Pipe Fittings are specially designed for use in reducing environment of industries. Monel is a copper nickel alloy with resistance against corrosion in acidic and alkaline environments. Available in both standard and non standard sizes with wide range of bending radius, these fittings can be machines or fabricated as per client's requirements. Made in accordance with industry standards and norms, the entire range has wide varieties of fittings for easy and quick installation of pipelines. The pipe fittings are made from superior grades of Monel and thus, suited for reducing conditions in valves, industrial heat exchangers and pumps. The finishing of the fittings ensure tight tolerance with high impact strength. There are available different sizes and pressure ratings in these pipe fittings that show excellent resistance against corrosion in acidic and alkaline environments.
We are manufacturing buttweld seamless and welded monel fittings and Monel pipe bends in accordance with ANSI/ASME and DIN standards. Fitwel Industries LLP is highly acclaimed manufacturer of the complete range of monel pipe fittings such as monel k500 reducer, monel K500 elbow, monel k500 tee, monel k500 cross, monel k500 stub ends and monel pipe bend. We are manufacturing monel buttweld pipe fittings in both socket weld and threaded form and monel pipe bends in both standard and non standard sizes, with bending radius of 1D to 10D. Fitwel Industries LLP can produce large size fabricated 100% radiography tested Monel 400 elbows, Monel 400 reducers, Monel 400 tees and Monel 400 large diameter fabricated pipe fittings. Their products are known for their high quality, great performance and zero defects. Also We offer wide range of Monel ASTM B366 400 Pipe Fittings such as Monel 400 Tee, Alloy 400 End Pipe Cap, Monel K500 reducer, B366 400 cross, Monel K500 elbow, Monel 400 stub ends etc.
Specifications : ASTM B366 / ASME SB366
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : Seamless Butt Weld Fittings: 1/2" - 10", Welded Butt Weld Fittings: 1/2" - 48"
Type : Seamless / Welded / Fabricated
Schedule : Sch 5 TO Sch XXS.
Thickness : 20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg., & Sch. 10, Sch. 40, Sch. 80 etc.
Grades : Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500)
Seamless/ Welded 100% Radiography Tested
Products | Size | |
ASTM B366 400 Monel Elbow – Long Radius | ASTM B366 K500 Monel Stub Ends | Sizes 1/2″ – 48″ |
ASTM B366 400 Monel Elbow – Short Radius | ASTM B366 K500 Monel Cross | |
ASTM B366 400 Monel Reducing Elbow | ASTM B366 K500 Monel Reducing Cross | |
ASTM B366 400 Monel 45° Elbow | ASTM B366 K500 Monel Tees | |
ASTM B366 K500 Monel Fabricated Tee | ASTM B366 400 Monel End Cap | |
ASTM B366 K500 Monel Reducer | ASTM B366 400 Monel Seamless Fittings | |
ASTM B366 400 Monel Concentric Reducer | ASTM B366 K500 Monel Pipe Nipple | |
ASTM B366 400 Monel Eccentric Reducer | ASTM B366 K500 Monel 5D Elbow | |
ASTM B366 400 Monel 3D Elbow | ASTM B366 K500 Monel Welded Pipe Fittings |
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
Monel 400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
Monel K500 | 2.4375 | N05500 | - | - | - | - | - |
Grade | C | Mn | Si | S | Cu | Fe | Ni |
Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |
Monel 400 Pipe Fittings | Monel K500 Buttweld Pipe Fittings |
Monel 400 Seamless Pipe Fittings | Monel 400 Welded Pipe Fittings |
Monel B366 400 Pipe Elbow | Alloy K500 Buttweld Tee |
Monel 400 Buttweld Reducer Suppliers | ANSI K500 Monel Pipe Fittings |
Monel UNS N04400 Stubends Dealer | ASTM B366 400 Monel Pipe Fittings Exporter |
Alloy 400 Butt weld Fittings Stockholder | Monel UNS N05500 Pipe End Cap Distributors |
Monel 400 45deg.Elbow | B366 K500 90deg. LR Elbow Manufacturer |
Monel DIN 2.4360 Pipe Tee | Monel ASTM B366 K500 Cross |
Monel DIN 2.4375 Buttweld Reducing Nipple | Alloy 400 Short Radius Elbow |
ANSI B16.9 Monel 400 Buttweld Fitting | K500 Monel End Pipe Cap Stockist |
ASTM B366 400 Welded Pipe Fittings | Monel JIS NW 4400 Pipe Fittings |
ASTM B366 400 / K500 Monel Pipe Fittings are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of ASTM B366 400 / K500 Monel Buttweld Pipe Fittings through a worldwide network of stock-keeping branches. These ASTM B366 400 / K500 Buttweld Fittings is use in various industries like :
