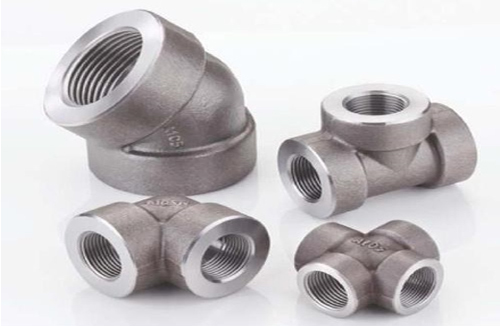

Fitwel Industries LLP is the leading supplier, manufactures, and export of an excellent range of Stainless Steel 347 Forged Fittings in India and worldwide. We hire only the best professionals and machinery so you can get the best. SS 347 Forged Fittings are available in various shapes, sizes, grades, and dimensions to fulfill all your requirements. The accurate dimensions and durability are solely for the purpose of your satisfaction. As a certified manufacturer and supplier of grade SS 347 Forged Pipe Fittings, we assure you the dimensions of all our products are accurate, their finishing fine so you don’t have trouble handling them. All our products have excellent resistance towards creep, cracks, and corrosion. We make them from the finest raw materials only so you get the best quality.
Stainless Steel 347 Forged Socket Weld Fittings have more strength and longer lifespan as compared to its counterpart. Stainless Steel 347 Forged Threaded Fittings have strong creep resistance and resistance towards acid attacks. They are widely used in multiple industries such as sugar mills, paper, and pulp industries, and the petrochemical industry. SS 347 Forged Tees are resistant to all types of corrosion in general. Typically they are used to hold pipes together. SS 347 Forged Cross, typical to its name, has 3 outlets and one inlet to separate or combine multiple connections. SS 347 Forged Couplings are used to hold together two pipes with the help of a socket. SS 347 Forged Unions are used to provide easy, quick disconnections or connections. SS 347 Forged Nipple Fittings has male threads on either end to combine two joints or fittings together. SS 347 Forged Elbow is available in various grades, sizes, shapes, and dimensions to suit every one need. Also We offer wide range of Stainless Steel ASTM A182 347 Forged Fittings such as SS 347 Forged Elbow, SS 347H Equal Tee, SS 347 Coupling, SS 347H Pipe Cap, SS 347 Union, SS 347 Bushing, SS 347 Plug, SS 347 Pipe Nipple, SS 347H Street Elbow.
Specifications : ASTM A182 & ASME SA182
Standard : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type : Socketweld Fittings, Screwed-Threaded Fittings
Threaded and Socket Weld Pipe Fittings
| Products | Size | |
| ASTM A182 SS 347 90° Elbows | ASTM A182 SS 347H 45° Elbows | Sizes 1/8″– 4″ Pressure Ratings – 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| ASTM A182 SS 347H Forged Caps | ASTM A182 SS 347 Couplings | |
| ASTM A182 SS 347 Forged Tees | ASTM A182 SS 347H Unions | |
| ASTM A182 SS 347H Forged Cross | ASTM A182 SS 347 Inserts | |
| ASTM A182 SS 347 Forged Plug | ASTM A182 SS 347H Street Elbows | |
| ASTM A182 SS 347H Bushings | ASTM A182 SS 347 Pipe Nipple | |
SS 347 / 347H Forged Fittings Manufacturing Standards :
| ASTM A182 - ASME SA182 | Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
| ASME B16.11 | Socket Welding and Threaded Forged Fittings |
| MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN |
| SS 347 | 1.4550 | S34700 | SUS 347 | 08Ch18N12B | X6CrNiNb18-10 |
| SS 347H | 1.4961 | S34709 | SUS 347H | - | X6CrNiNb18-12 |
| Grade | C | Mn | Si | P | S | Cr | Cb | Ni | Fe |
| SS 347 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 - 20.00 | 10xC – 1.10 | 9.00 - 13.00 | 62.74 min |
| SS 347H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 - 19.00 | 8xC – 1.10 | 9.0 -13.0 | 63.72 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1454 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| Stainless Steel 347 Forged Pipe Fittings | Stainless Steel 347H High Pressure Forged Fittings |
| Stainless Steel 347H Socket Weld Fittings | Stainless Steel 347 Threaded Fittings |
| Stainless Steel UNS S34700 Socket Weld 90 Deg Elbow | Stainless Steel 347 Threaded 90 Deg Elbow |
| SS 347H Socket Weld 45 Degree Elbow Suppliers | ANSI 347 Stainless Steel Screwed 45 Degree Elbow |
| SS 347 Forged Tee Dealer | SS 347H Threaded Tee Exporter |
| SS 347 Socket Weld Cross Stockholder | Steel 347H Threaded / Screwed Cross Distributors |
| Stainless Steel SUS 347 Socket Weld Half Coupling | SS 347 Threaded Half Coupling Manufacturer |
| Stainless Steel DIN 1.4550 Full Coupling | Stainless Steel JIS 347H Coupling |
| Stainless Steel 347H Socket Weld Cap | Stainless 347 Screwed Cap |
| ANSI B16.11 SS 347 Socket Weld Union | SS 347H Threaded / Screwed Union Stockist |
| ASTM A182 SS DIN 1.4961 Screwed Hex Plug | ASME SA182 SS 347 Square Plug |
| Stainless Steel 347H Reducing Tee | 347 SS Threaded / Screwed Bushing |
| A182 SS UNS S34709 Hex Nipples | ASME SA182M SS 347H Swage Nipple |
| Steel 347H Threaded Street Elbow | SS 347 Threaded / Screwed Pipe Nipple |
| Stainless Steel 347 Socket weld Unequal Tee | SS 347H ASME B16.11 Threaded Unequal Tee |
ASTM A182 347 / 347H Forged Fittings are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of ASTM A182 347 / 347H Stainless Steel Forged Pipe Fittings through a worldwide network of stock-keeping branches. These ASTM A182 347 / 347H Forged Fittings is use in various industries like :
