Stainless Steel Threaded Flange/Screwed Flange Manufacturer, Suppliers & Exporter in Mumbai, India

ASME B16.9 Buttweld Equal Tee

Fitwel Industries LLP is potential ASME B16.5 Threaded Flange manufacturers in India. We are manufacturing threaded Flanges, Threaded Flanges pn16 & Threaded Reducing Flanges at a low price due to reasonable man-hours in India and a good source of high-quality NPT threaded Flanges at the best price available in Mumbai, India. Please check Threaded Flange Dimensions Chart before buying Threaded Flange Reducer, We have ready stock of Threaded Flange Adapter, Threaded Flange Bushing, and Threaded Flange Connection in our stockyard in any size range. Threaded Flange Application in Heavy oil refineries, Petrochemicals, and acids, Automobile Sector.

Fitwel Industries LLP is a highly acclaimed supplier of Threaded flange din 2566 approved by Saudi Aramco. We maintain a wide stock of stainless steel threaded flange, weld-on threaded flange, and reducing threaded flange. Fitwel Industries LLP stock complete range of NPT threaded flange, threaded weld neck flange in Stock in various sizes.
If you are looking to purchase A105 threaded flange at the best price in India, check the price list of stainless steel threaded flange including reducing threaded flange ASME B16.5, raised face threaded flange, and 3-inch threaded flange.

What is Stainless Steel Threaded flange?

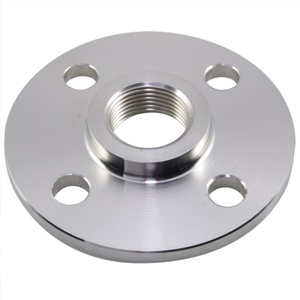

Stainless Steel Threaded Flange:- Stainless Steel Threaded Flange is connecting with pipe without welding. It is similar to slip on flange or a socket weld flange, fitted with a tapered thread (screw) inside the flange bore that is mounted on the pipe with corresponding external threads.

What is Stainless Steel Screwed flange?

Stainless Steel Screwed Flange:- The Stainless Steel Screwed Elbow Fitting is a pipe fitting installed between two lengths of pipe or tube allowing a change of direction, usually 90° or 45°. The ends can be be machined for Stainless Steel Screwed (usually female), or socketed. When the two ends differ in size, it is called a Reducing or Reducer Elbow.

ASME B16.5 Stainless Steel Threaded Flanges Specification :

Standard : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings

Size : 1/2" (15 NB) to 48" (1200NB)

Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.

Flange Face Type: Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

BS: BS4504 , BS4504, BS1560, BS10

DIN: DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673

ANSI B16.47 Stainless Steel Threaded Flanges Material & Grades:

Stainless Steel Threaded Flanges : ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L


All Classes Dimensions of Stainless Steel Threaded Flanges

Slip On flange

NPS 1/2
CLass 150 300 600 900 1500 2500
DIA
A
30 38 38 38 38 43
DIA
D
90 95 95 120 120 135
THK
B
9.6 12.7 14.3 22.3 22.3 30.2
11.2 14.3 20.7 28.7 28.7 36.6
DIA
G
35.1 35.1 35.1 35.1 35.1 35.1
DIA
K
60.3 66.7 66.7 82.6 82.6 88.9
H 14 21 22 32 32 40
15.6 22.6 28.4 38.4 38.4 46.4
NO.
L
4 4 4 4 4 4
DIA
L
15.9 15.9 15.9 22.2 22.2 22.2
Stud Bolts Diameter x Length
DIA
(in)
1/2 1/2 1/2 3/4 3/4 3/4
Len
mm
55 65 75 110 110 120
Other Diameters
NPS 3/4 1 2

Notes:

  • Dimensions are in millimeters unless otherwise indicated.
  • The length of the Stud Bolt does not include the height of the chamfers (points).

  • Call@ 9987994248. India's leading Exporter, Manufacturer, and Supplier of Premium Quality AISI/ ANSI/ASME B16.5 Stainless Steel Screwed Flange And Stainless Steel Threaded Flanges. EN 1092-2 PN16 Stainless Steel Stainless Steel Screwed flange & Stainless Steel Threaded Flange in India, Mumbai, Ahmedabad, Chennai, Pune & so on. MSS SP-44 Bsp Stainless Steel Threaded Flange dimensions and price in Mumbai.

    Other Names: ANSI B16.5 Stainless Steel Screwed Flanges, ANSI B16.5 Stainless Steel Threaded Flange, Stainless Steel Threaded Flange Class 150, Stainless Steel Screwed Flange Class 300

    Material: Stainless Steel

    Brand: Fitwel Industries LLP

    Manufacturer: Fitwel Industries LLP

    Suppliers & Exporter: Fitwel Industries LLP

    Rating: 4.2/5 based on 441 customer reviews

    ASME B16.9 Stainless Steel Threaded Available Types

    Stainless Steel Threaded Flanges Manufacturers in India Stainless Steel Screwed Flanges Manufacturers
    ASME B16.9 Stainless Steel Threaded Flanges Stainless Steel Threaded Plate Flanges
    Forged Stainless Steel Threaded Flanges Suppliers Stainless Steel Threaded Plate Flanges Manufacturers
    ANSI B16.9 Stainless Steel Threaded Flanges Dealer ASME B16.28 Stainless Steel Threaded Flanges Exporter
    Carbon Steel Stainless Steel Threaded Flanges High Quality Stainless Steel Threaded Flanges Manufacturer
    ASTM A403 Alloy Steel Stainless Steel Threaded Flanges Duplex Steel Stainless Steel Threaded Flanges
    Super Duplex Steel Stainless Steel Threaded Flanges Copper Nickel Stainless Steel Threaded Flanges
    High Nickel Alloy Stainless Steel Threaded Flanges Hastelloy Stainless Steel Threaded Flanges
    Titanium Stainless Steel Threaded Flanges Inconel Stainless Steel Threaded Flanges

    Stainless Steel Threaded Flanges Application

    ASME B16.9 Stainless Steel Threaded Flanges are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of Stainless Steel Threaded Flanges through a worldwide network of stock-keeping branches. These Plate & Forged Flanges is used in various industries like:

  • Stainless Steel Threaded Flanges For Oil & Gas Industries
  • Stainless Steel Threaded Flanges For Petrochemical Industries
  • Stainless Steel Threaded Flanges For Engineering Industries
  • Stainless Steel Threaded Flanges For Chemical Industries
  • Stainless Steel Threaded Flanges For Sugar Industries
  • Stainless Steel Threaded Flanges For Power Generation Industries
  • Stainless Steel Threaded Flanges For Fertilizers Industries
  • Stainless Steel Threaded Flanges For Food Processing Industries
  • Stainless Steel Threaded Flanges For Polymer Industries
  • Stainless Steel Threaded Flanges For Dairy Industries
  • Stainless Steel Threaded Flanges For Bio-Pharma Industries


  • Coutries & Cities We Serve


    We are renowned & most acclaimed Manufacturers, Suppliers & Exporter And Stockist of Threaded Flanges in Stainless Steel.

    For More Information About, Stainless Steel Threaded Flanges Please Call 91-22-2382 9256 or Send an Email to sales@fitwelindia.com
