Alloy Steel Slip on Raised Flanges, SA SORF Flanges, Alloy Steel Slip on Flanges Manufacturers & Suppliers in India, Mumbai

ASME B16.9 Buttweld Equal Tee

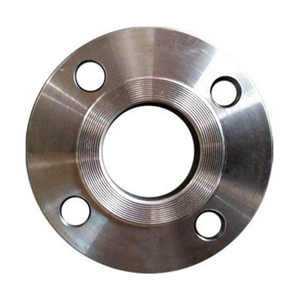

Alloy Steel Flanges Slip On Flanges are made in different steel alloys. The flanges vary in dimensions and types. There are ½ inches through 48 inches of nominal diameter sizes of flanges. Fitwel Industries LLP is a leading manufacturer of the ASTM A182 Low Alloy Steel Slip On Flanges flanges as well as the other types of alloys. The ASTM A 182 specification specifies flanges for high-pressure services. The flanges also come in B16.5, B16.47, and other standards and dimensions. The Alloy Steel Slip on Flange Material can vary according to the chemical composition. The grade 304 flanges are the most commonly used flanges and they have 18% chromium and 8% nickel in the composition. TheANSI B16.5 Alloy Steel Slip On Flanges is a flange type that allows the pipes to slip onto the flange and makes the connection in precise locations.
Seamless pipes are used with slip on flanges to make the process smooth.The Alloy Steel Slip on Flange has a Raised face that holds larger pipes in place for easy welding and installation. As one of the leading Alloy Steel Slip On Flanges Manufacturers in India, we supply all different types of flanges in all material grades. Please contact us for your alloy steel flange needs.

What is Alloy Steel Alloy Steel Slip on flanges?

Alloy Steel Slip On Flange is essentially a ring that is placed over the pipe end, with the flange face extending from the end of the pipe by enough distance to apply a weld bead on the inside diameter. The OD of Alloy Steel Slip on flange is also welded on the backside of the flange.

Where Alloy Steel Slip on flanges are used?

Alloy Steel Slip on flanges are suitable for low-pressure applications and are easy to install and weld onto different pipes. In addition, welding helps to reduce manufacturing costs. Alloy Steel Slip-on flanges do not require a large longitudinal space in the line to be mounted.

How are Alloy Steel Slip on flanges welded?

Alloy Steel Slip-on fittings Alloy Steel Slip onto the end of the pipe. The flange is then welded around the contact points on the inside and outside of the pipe and the flange. Alloy Steel Slip-on flanges are not considered as strong a joint as weld-neck or butt-welded connections.

Advantages of Slip On Flange Asme B16.5 Class 600 include -

  • Low cost of installation
  • Less time required and spent on ensuring the accuracy of the cut pipe
  • These Copper SORF Flange are somewhat easier to align.
  • The Paddle Slip On Flange has a low hub since the pipe slips into the flange before being welded.
  • The flange is welded both inside and outside, which is known to provide sufficient strength.
  • Most Stainless Steel Slip On Flange Manufacturer In India recommend them to customers of various industries as they prevent leakage.

  • ASME B16.5 Alloy Steel Slip On Flanges Specification :

    Standard : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings

    Size : 1/2" (15 NB) to 48" (1200NB)

    Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.

    Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

    BS : BS4504 , BS4504, BS1560, BS10

    DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673

    ANSI B16.47 Alloy Steel Slip On Flanges Material & Grades:

    Alloy Steel Slip On Flanges :ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91

    Dimensions of Class 150 Alloy Steel Slip-On Flanges

    Alloy Steel Slip On flange

    All dimensions are in "mm" unless noted otherwise.

    NPS 1/2 - I.D. 22.3
    CLass 150 300 600 900 1500 2500
    DIA
    A
    30 38 38 38 38 ...
    DIA
    D
    90 95 95 120 120 ...
    THK
    B
    9.6 12.7 14.3 22.3 22.3 ...
    11.2 14.3 20.7 28.7 28.7 ...
    DIA
    G
    35.1 35.1 35.1 35.1 35.1 ...
    DIA
    K
    60.3 66.7 66.7 82.6 82.6 ...
    H 14 21 22 32 32 ...
    15.6 22.6 28.4 38.4 38.4 ...
    NO.
    L
    4 4 4 4 4 ...
    DIA
    L
    15.9 15.9 15.9 22.2 22.2 ...
    Stud Bolts Diameter x Length
    DIA
    (in)
    1/2 1/2 1/2 3/4 3/4 ...
    Len
    mm
    55 65 75 110 110 ...

    Dimensions of Class 150 Alloy Steel Slip On Flanges as per ASME B16.5

  • "Nominal Pipe Size":- 1/2- 3/4- 1- 1.1/4- 1.1/2- 2- 2.1/2- 3- 3.1/2- 4- 5- 6- 8- 10- 12- 14- 16- 18- 20- 24
  • "Outside diameter of flange (D)":- 88.9- 98.6- 108- 117.3- 127- 152.4- 177.8- 190.5- 215.9- 228.6- 254- 279.4- 342.9- 406.4- 482.6- 533.4- 596.9- 635- 698.5- 812.8
  • "Thick of flange (B)":- 11.2- 12.7- 14.2- 15.7- 17.5- 19.1- 22.4- 23.9- 23.9- 23.9- 23.9- 25.4- 28.4- 30.2- 31.8- 35.1- 36.6- 39.6- 42.9- 47.8
  • "Diameter of Hub at base (A)":- 35.1- 42.9- 50.8- 63.5- 73.2- 91.9- 104.6- 127- 139.7- 157.2- 185.7- 215.9- 269.7- 323.9- 381- 412.8- 469.9- 533.4- 584.2- 692.2
  • "Diameter of raised face (G)":- 30.2- 38.1- 49.3- 58.7- 65- 77.7- 90.4- 108- 122.2- 134.9- 163.6- 192- 246.1- 304.8- 365.3- 400.1- 457.2- 505- 558.8- 663.4
  • "Length thru Hub (H)":- 15.7- 15.7- 17.5- 20.6- 22.4- 25.4- 28.4- 30.2- 31.8- 33.3- 36.6- 39.6- 44.5- 49.3- 55.6- 57.2- 63.5- 68.3- 73.2- 82.6
  • "Dia of bore (ID)":- 22.4- 27.7- 34.5- 43.2- 49.5- 62- 74.7- 90.7- 103.4- 116.1- 143.8- 170.7- 221.5- 276.4- 327.2- 359.2- 410.5- 461.8- 513.1- 616
  • "No of holes":- 4- 4- 4- 4- 4- 4- 4- 4- 8- 8- 8- 8- 8- 12- 12- 12- 16- 16- 20- 20
  • "Dia of holes (L)":- 15.7- 15.7- 15.7- 15.7- 15.7- 19.1- 19.1- 19.1- 19.1- 19.1- 22.4- 22.4- 22.4- 25.4- 25.4- 28.4- 28.4- 31.8- 31.8- 35.1
  • "Dia of bolts":- 1/2- 1/2- 1/2- 1/2- 1/2- 5/8- 5/8- 5/8- 5/8- 5/8- 3/4- 3/4- 3/4- 7/8- 7/8- 1- 1- 1-1/8- 1-1/8- 1-1/4
  • "Diam of bolt circle (K)":- 60.5- 69.9- 79.2- 88.9- 98.6- 120.7- 139.7- 152.4- 177.8- 190.5- 215.9- 241.3- 298.5- 362- 431.8- 476.3- 539.8- 577.9- 635- 749.3
  • "Approx weight kg":- 0.5 1- 1- 1- 1- 2- 3- 4- 5- 6- 7- 9- 14- 20- 29- 41- 44- 59- 75- 100


  • Call@ 9987994248 The Global Alloy Steel Slip-on flanges Manufacturer, Supplier & Exporter in Mumbai & India of High-Pressure SS, Alloy Steel Slip On Flanges Class 150, Alloy Steel Slip On Raised Face Flanges, SS SORF Flanges Class 150, Buy Alloy Steel Slip On Flange at Low Price in UAE, Dubai, Philippines, Pune, Ahmedabad, Chennai, etc.

    Other Names: ANSI B16.5 Alloy Steel Slip On Flanges, SORF Flanges, Alloy Steel Slip On Flange Class 150, SORF Flange Class 150

    Material: Alloy Steel

    Brand: Fitwel Industries LLP

    Manufacturer: Fitwel Industries LLP

    Suppliers & Exporter: Fitwel Industries LLP

    Rating: 4.4/5 based on 944 customer reviews

    ASME B16.9 Alloy Steel Slip On Flanges Available Types

    Alloy Steel Slip On Flanges Manufacturers in India SORF Raised Face Flanges
    ASME B16.9 Alloy Steel Slip On Flanges Alloy Steel Plate Slip On Flanges
    Alloy Steel Forged Slip On Flanges Suppliers Alloy Steel Plate Slip On Flanges Manufacturers
    ANSI B16.9 Alloy Steel Slip On Flanges Dealer ASME B16.28 Alloy Steel Slip On Flanges Exporter

    Alloy Steel Slip On Application

    ASME B16.9 Alloy Steel Slip On are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of Alloy Steel Slip On Flanges through a worldwide network of stock-keeping branches. These Plate & Forged Alloy Steel Slip On is used in various industries like:

  • Alloy Steel Slip on Flanges For Oil & Gas Industries
  • Alloy Steel Slip on Flanges For Petrochemical Industries
  • Alloy Steel Slip on Flanges For Engineering Industries
  • Alloy Steel Slip on Flanges For Chemical Industries
  • Alloy Steel Slip on Flanges For Sugar Industries
  • Alloy Steel Slip on Flanges For Power Generation Industries
  • Alloy Steel Slip on Flanges For Fertilizers Industries
  • Alloy Steel Slip on Flanges For Food Processing Industries
  • Alloy Steel Slip on Flanges For Polymer Industries
  • Alloy Steel Slip on Flanges For Dairy Industries
  • Alloy Steel Slip on Flanges For Bio-Pharma Industries


  • Coutries & Cities We Serve


    We are renowned & most acclaimed Manufacturers, Suppliers & Exporter And Stockist of SORF Raised Face Slip On Flanges in Alloy Steel.

    For More Information About , Socket Weld & Threaded Alloy Steel Slip On Please Call 91-22-2382 9256 or Send an Email to sales@fitwelindia.com
