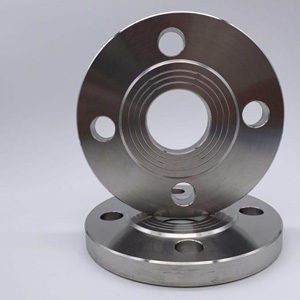

Fitwel Industries LLP is producing the entire range of Nickel Slip-on flanges that are popular in the global industries for their higher durability and optimum performance. Our domestic, as well as global customers, can avail of these flanges in different dimensions, sizes, designs, and grades at very reasonable rates. Our highly experienced and skilled fabrication team is manufacturing these flanges using high-grade raw material that is purchased from the best supplier in the market. Each Nickel Alloy Slip-on flange, Copper Nickel Slip on Flange, Alloy 20 Slip on Flange, SMO 254 Slip on Flange, Inconel Slip on Flange, Monel Slip on Flange, Hastelloy Slip on Flange, Titanum Slip on Flange, Incoloy Slip on Flange & more is inspected for different parameters through numerous quality checks under strict supervision. The quality of flanges is maintained until the delivery by packing them in suitable packaging material for protection from damage. We strictly follow the delivery deadlines and offer safe delivery by using the fastest mode of transport.
Nickel alloys Flanges are well known for their strength and have high grades. These flanges are well resistant to rust, corrosion, strong acids, and much more. These flanges are made from a combination of superior quality material as well.
Nickel Alloy, Copper Nickel, Alloy 20, SMO 254, Inconel, Monel Slip On Flange is essentially a ring that is placed over the pipe end, with the flange face extending from the end of the pipe by enough distance to apply a weld bead on the inside diameter. The OD of Nickel Alloy, Copper Nickel, Alloy 20, SMO 254, Inconel, Monel Slip on flange is also welded on the backside of the flange.
Nickel Alloy, Copper Nickel, Alloy 20, SMO 254, Inconel, Monel Slip on flanges are suitable for low-pressure applications and are easy to install and weld onto different pipes. In addition, welding helps to reduce manufacturing costs. Nickel Alloy, Copper Nickel, Alloy 20, SMO 254, Inconel, Monel Slip-on flanges do not require a large longitudinal space in the line to be mounted.
Nickel Alloy, Copper Nickel, Alloy 20, SMO 254, Inconel, Monel Slip-on fittings Nickel Alloy, Copper Nickel, Alloy 20, SMO 254, Inconel, Monel Slip onto the end of the pipe. The flange is then welded around the contact points on the inside and outside of the pipe and the flange. Nickel Alloy, Copper Nickel, Alloy 20, SMO 254, Inconel, Monel Slip-on flanges are not considered as strong a joint as weld-neck or butt-welded connections.
Standard : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Size : 1/2" (15 NB) to 48" (1200NB)
Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
BS : BS4504 , BS4504, BS1560, BS10
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673
Nickel Alloy Slip On Flanges :ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020).
All dimensions are in "mm" unless noted otherwise.
| CLass | 150 | 300 | 600 | 900 | 1500 | 2500 |
| DIA A |
30 | 38 | 38 | 38 | 38 | ... |
| DIA D |
90 | 95 | 95 | 120 | 120 | ... |
| THK B |
9.6 | 12.7 | 14.3 | 22.3 | 22.3 | ... |
| 11.2 | 14.3 | 20.7 | 28.7 | 28.7 | ... | |
| DIA G |
35.1 | 35.1 | 35.1 | 35.1 | 35.1 | ... |
| DIA K |
60.3 | 66.7 | 66.7 | 82.6 | 82.6 | ... |
| H | 14 | 21 | 22 | 32 | 32 | ... |
| 15.6 | 22.6 | 28.4 | 38.4 | 38.4 | ... | |
| NO. L |
4 | 4 | 4 | 4 | 4 | ... |
| DIA L |
15.9 | 15.9 | 15.9 | 22.2 | 22.2 | ... |
| Stud Bolts Diameter x Length | ||||||
| DIA (in) |
1/2 | 1/2 | 1/2 | 3/4 | 3/4 | ... |
| Len mm |
55 | 65 | 75 | 110 | 110 | ... |
| Nickel Alloy, Copper Nickel, Alloy 20, SMO 254, Inconel, Monel Slip On Flanges Manufacturers in India | SORF Raised Face Flanges |
| ASME B16.9 Nickel Alloy, Copper Nickel, Alloy 20, SMO 254, Inconel, Monel Slip On Flanges | Nickel Alloy, Copper Nickel, Alloy 20, SMO 254, Inconel, Monel Plate Slip On Flanges |
| Nickel Alloy, Copper Nickel, Alloy 20, SMO 254, Inconel, Monel Forged Slip On Flanges Suppliers | Nickel Alloy, Copper Nickel, Alloy 20, SMO 254, Inconel, Monel Plate Slip On Flanges Manufacturers |
| ANSI B16.9 Nickel Alloy, Copper Nickel, Alloy 20, SMO 254, Inconel, Monel Slip On Flanges Dealer | ASME B16.28 Nickel Alloy, Copper Nickel, Alloy 20, SMO 254, Inconel, Monel Slip On Flanges Exporter |
ASME B16.9 Nickel Alloy, Copper Nickel, Alloy 20, SMO 254, Inconel, Monel Slip On are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of Nickel Alloy, Copper Nickel, Alloy 20, SMO 254, Inconel, Monel Slip On Flanges through a worldwide network of stock-keeping branches. These Plate & Forged Nickel Alloy, Copper Nickel, Alloy 20, SMO 254, Inconel, Monel Slip On is used in various industries like:
We are renowned & most acclaimed Manufacturers, Suppliers & Exporter And Stockist of SORF Raised Face Slip On Flanges in Nickel Alloy, Copper Nickel, Alloy 20, SMO 254, Inconel, Monel.
For More Information About , Socket Weld & Threaded Nickel Alloy, Copper Nickel, Alloy 20, SMO 254, Inconel, Monel Slip On Please Call 91-22-2382 9256 or Send an Email to sales@fitwelindia.com
