Fitwel Industries LLP. is an ISO ISO 9001: 2000 company that aims to create sustainable products through adopting the strategy to use precise resources. is a pioneer and most eminent manufacturer, exporter and supplier of high-quality Stainless Steel 310 Flanges. This flange offers great corrosion resistance, high durability, and high strength properties to the various power generation industry, gas processing industry, and pharmaceutical industry applications. ASTM A182 SS 310S Socket weld Flanges are very easy to be welded and fabricated, a quality it inherits due to its low Carbon.

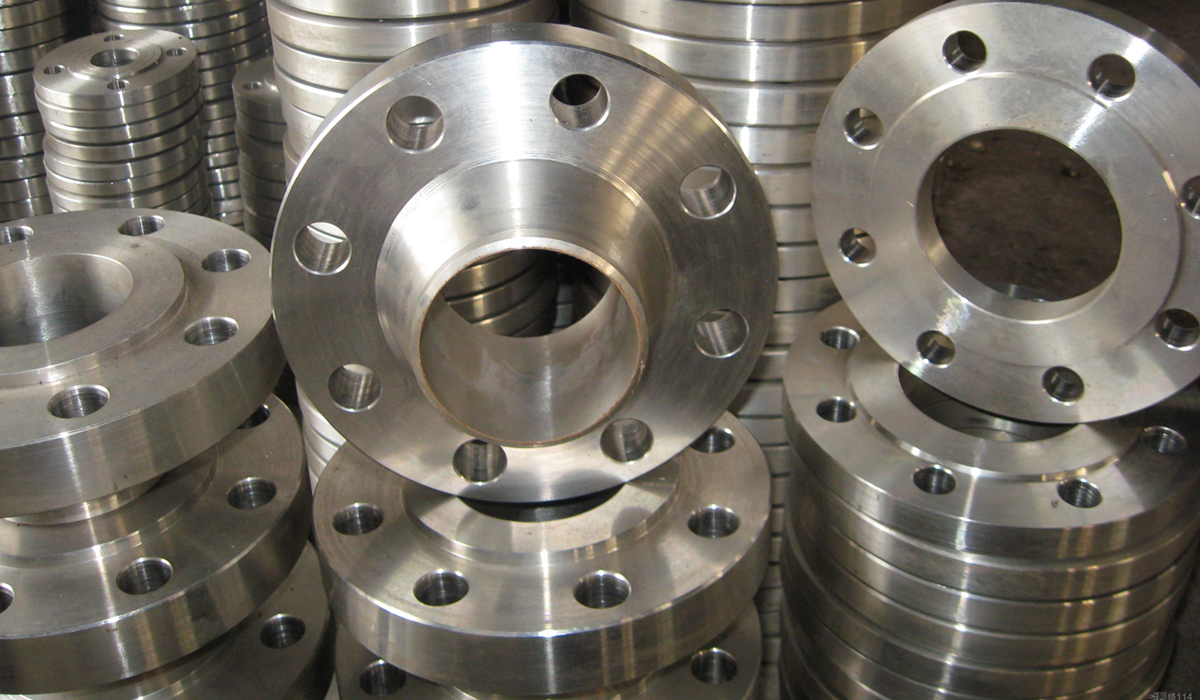

Stainless Steel 310 Flanges are made up of a stainless steel grade that has high amounts of nickel and chromium. It is a chromium nickel alloy with 24% chromium and 19% nickel in the composition. Navstar Steel is a leading manufacturer and supplier of the Stainless Steel 310 Flanges in different variations. There are also 310S and 310H grades of flanges based on the carbon content. These flanges are used in high temperature service with high corrosion prone environments because of the high temperature tolerance and high oxidation corrosion resistance. The material has 1402 degrees Celsius melting point which allows them to operate under high temperatures. The SS 310 Flanges are generally made up of chromium and nickel contents. They are characterized by high density and melting point and also have sufficient yield strength and tensile strength and are supposed to provide corrosion resistance. Our UNS S31008 SS Weld Neck Flanges are customarily applicable to the process plants. Our SS 310 Flanges are 18-8 austenitic stainless steel flanges, with their Chromium-Nickel combination being heat resistant and oxidation resistant. The fertilizer and chemical processing industry use these flanges for mild cyclic operations. SS UNS S13009 Blind Flanges are excellent in such cases, they are resistant to carbide precipitation as well. Also We offer wide range of Stainless Steel ASTM A182 310 Flanges such as SS 310 Slip On Flanges, SS 310S Weld Neck Flanges, SS 310H Socket Weld Flanges, SS 310 Blind Flanges, SS 310H Orifice Flanges, SS 310S Spectacle Blind Flanges, SS 310 Screwed / Threaded Flanges, SS 310 Reducing Flanges, SS 310S Ring Type Joint Flanges (RTJ) etc.
Specifications : ASTM A182 / A240 & ASME SA182 / SA240
Dimensions : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size : 1/2" (15 NB) to 48" (1200NB)
Class / Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type : Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Forged and Plate Flanges
|ASTM A182 SS 310 Slip-On Flanges||ASTM A182 SS 310S Threaded Flanges||Sizes 1/8″ – 36″
Raised Face or Flat Face
|ASTM A182 SS 310S Weld Neck Flanges||ASTM A182 SS 310H Socket Weld Flanges|
|ASTM A182 SS 310 Blind Flanges||ASTM A182 SS 310 Reducing Flanges|
|ASTM A182 SS 310S Lap Joint Flanges||ASTM A182 SS 310H Plate Flanges|
|ASTM A182 SS 310H Orifice Flanges||ASTM A182 SS 310S Forged Flanges|
|ASTM A182 SS 310 Ring Type Joint Flanges||ASTM A182 SS 310H Square Flanges|
|ASME/ANSI B 16.5||Welding Neck Flange, Slip on Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Ring Type Joint Flange|
|PRESSURE CLASS||150, 300, 400, 600, 900, 1500, 2500|
|ASME/ANSI B 16.47||Welding Neck Flange, Blind Flange [Series A & B]|
|PRESSURE CLASS||75, 150, 300, 400, 600, 900|
|ASME/ANSI B 16.36||Welding Neck Flange, Slip on Flange, Threaded Flange|
|PRESSURE CLASS||300, 400, 600, 900, 1500, 2500|
|BS 4504 SEC 3.1||Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange|
|PRESSURE CLASS||PN 2.5 TO PN 40|
|BS 4504[PART 1]||Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange|
|PRESSURE CLASS||PN 2.5 TO PN 400|
|BS 1560 BOSS||Welding Neck Flange, Socket Welding Flange, Slip-On Flange, Blind Flange, Screwed Boss Flange, Lapped Flange|
|PRESSURE CLASS||150, 300, 400, 600, 900, 1500, 2500|
|BS10||Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange|
|TABLE||D, E, F, H|
|DIN FLANGES||DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673|
|PRESSURE CLASS||PN 6 TO PN 100|
|SS 310||1.4841||S31000||SUS 310||310S24||20Ch25N20S2||-||X15CrNi25-20|
|SS 310S||1.4845||S31008||SUS 310S||310S16||20Ch23N18||-||X8CrNi25-21|
|SS 310||0.015 max||2.0 max||0.15 max||0.020 max||0.015 max||24.00 - 26.00||0.10 max||19.00 - 21.00||54.7 min|
|SS 310S||0.08 max||2.0 max||1.00 max||0.045 max||0.030 max||24.00 - 26.00||0.75 max||19.00 - 21.00||53.095 min|
|SS 310H||0.04 – 0.10||2.0 max||1.00 max||0.045 max||0.030 max||24.00 - 26.00||-||19.00 - 21.00||53.885 min|
|Density||Melting Point||Tensile Strength||Yield Strength (0.2%Offset)||Elongation|
|7.9 g/cm3||1402 °C (2555 °F)||Psi – 75000 , MPa – 515||Psi – 30000 , MPa – 205||40 %|
|Stainless Steel 310 Flanges||Stainless Steel 310S EN 1092-1 Flanges|
|Stainless Steel 310H BS 4504 Flanges||Stainless Steel 310 Forged Flanges|
|Stainless Steel UNS S31000 Flanges||Stainless Steel 310 Slip on Flanges|
|SS 310S Flat Flange Suppliers||ANSI 310H Stainless Steel Blind Flange|
|SS UNS S31008 Weld Neck Flanges Dealer||SS 310 Socket weld Flanges Exporter|
|SS 310S Long Weld Neck Flanges Stockholder||Steel 310H Threaded Flanges Distributors|
|Stainless Steel SUS 310 Reducing Flanges||SS UNS S31009 Ring Type Joint Flanges Manufacturer|
|Stainless Steel DIN 1.4841 Orifice Flange||Stainless Steel 310S Spectacle Blind Flanges|
|Stainless Steel 310 WNRF Flange||Stainless DIN 1.4845 SORF Flanges|
|ANSI B16.5 SS 310 RTJ Flanges||SS 310S Screwed Flanges Stockist|
|ASTM A182 SS 310 Lap Joint Flanges||ASME SA182 SS 310 BLRF Flange|
|Stainless Steel 310H Raised Face Flanges||310 SS Nipoflange|
|A182 SS 310S Square Flanges||ASME SA182M SS 310 SWRF Flange|
|Steel 310 Tongue & Groove Flanges||SS 310H Male & Female Flanges|
|Stainless Steel 310 DIN Flanges||SS 310 ASME B16.5 Flanges|
ASTM A182 310 / 310S / 310H Pipe Flanges are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of ASTM A182 310 / 310S / 310H Stainless Steel Flanges through a worldwide network of stock-keeping branches. These ASTM A182 310 Flange is use in various industries like :
A Wide Range Of the Best Quality 310 / 310S / 310H Stainless Steel Flanges, Stainless Steel Flange, ss flanges specifications, ss 310 flange price list, ss 310S flange price, stainless steel 310H flange dimensions, stainless steel 310 threaded pipe flange, stainless steel pn16 flange dimensions, stainless steel 310S flange weight calculator, Stainless Steel 310 AWWA Flanges, 1/2" stainless steel floor flange, npt threaded flange, ansi class 150 stainless steel 310 flange pressure rating, stainless steel flanges suppliers, ASME/ ANSI, EN, DIN, AFNOR, AWWA, GOST, BS, JIS, AS, MSS, SA, UNI 310 Flanges, Ring Spacers, ss 310 Weldoflange, ss 310 Flange Outlet, BS 10 Flanges, Bleed Ring, ss 310s flange class 150, steel beam flange, ss 310 flanges dimensions, ss 310H flanges manufacturer, plate flange manufacturers, plate flange dimensions in mm, plate flange design, plate flange thickness calculation, 150# Stainless Steel 310 Flanges, 300# Stainless Steel 310S Flanges, 600# Stainless Steel 310H Flanges, 1500# Stainless Steel 310 Flanges, 2500# Stainless Steel 310S Flanges Manufacturer, Supplier in India.
We are renowned & most acclaimed Source, Stock, Distribution, Manufacturer, Suppliers, Stockholder, Traders, Wholesaler, Dealer, Distributor, Importer & Exporter, Fabricator, Stockist of Butt Weld Equal Tee in Stainless Steel.
