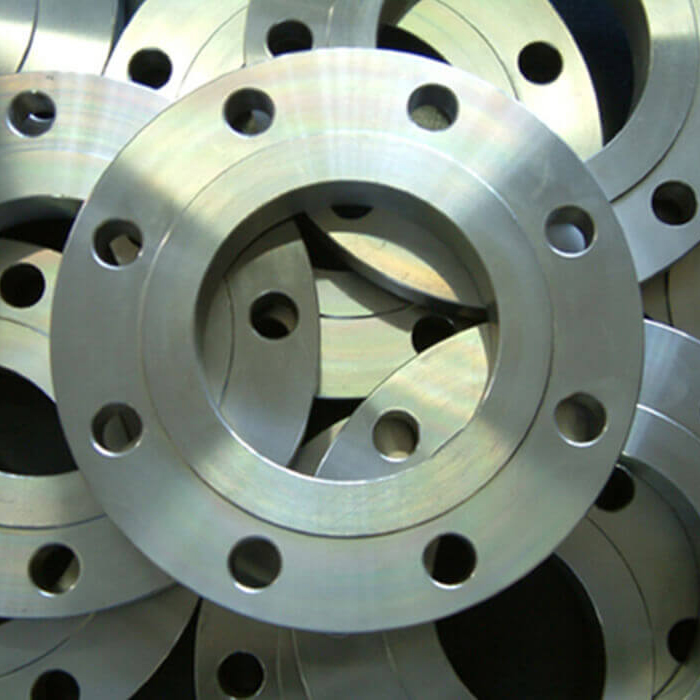

We, Fitwel Industries LLP, an ISO 9001:2015 company strive to offer products that reduce cost and raise output. We are a manufacturer, supplier, and exporter of Stainless Steel 347/347H Flanges that are austenitic flanges with traces of Niobium which thwarts the formation of Chromium carbides near grain boundary. The A182 f347 blind flanges is manufactured from niobium stabilized austenitic stainless steel grade. Niobium has been added to the 347 stainless steel flanges in order to suppress grain boundary Chromium Carbide precipitation in the alloy. These a182 f347 flanges are known for their good general corrosion resistance properties. Flanges produced from this grade somewhat have better corrosion resistance in strong oxidizing conditions than 321 (UNS S32100).
The ASTM a182 f347 flanges ANSI b16.5 has excellent resistance to intergranular corrosion after being exposed to temperatures in the chromium carbide precipitation range. The temperatures in the chromium carbide precipitation range are between 800°F – 1500°F. The ASTM a182 f347 flange alloy tends to have good oxidation resistance and good creep strength even at elevated temperatures like 1500°F. Similarly, the ASTM a182 grade f 347 also possesses good toughness at low temperatures. A higher carbon version of the stainless steel 347 flanges, i.e. the Alloy 347H was developed for enhanced creep resistance. Apart from this, the high carbon version of the ASTM a182 gr f347 is meant for applications where higher strength is required at elevated temperatures above 1000°F. The content of carbon in the High content version of the stainless steel 347 flanges blind ranges between 0.04% – 0.10%. Although the Alloy of the
The ASTM a182 347 cannot be hardened by heat treatment, it can be hardened only by cold working. 347 stainless steel flanges manufacturers in India note that the alloy can be easily welded and processed by conventional shop fabrication practices.
Specifications : ASTM A182 / A240 & ASME SA182 / SA240
Dimensions : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size : 1/2" (15 NB) to 48" (1200NB)
Class / Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type : Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Forged and Plate Flanges
| Products | Size | |
| ASTM A182 SS 347 Slip-On Flanges | ASTM A182 SS 347H Threaded Flanges | Sizes 1/8″ – 36″ Raised Face or Flat Face |
| ASTM A182 SS 347H Weld Neck Flanges | ASTM A182 SS 347 Socket Weld Flanges | |
| ASTM A182 SS 347 Blind Flanges | ASTM A182 SS 347H Reducing Flanges | |
| ASTM A182 SS 347H Lap Joint Flanges | ASTM A182 SS 347 Plate Flanges | |
| ASTM A182 SS 347H Orifice Flanges | ASTM A182 SS 347 Forged Flanges | |
| ASTM A182 SS 347 Ring Type Joint Flanges | ASTM A182 SS 347H Square Flanges | |
SS 347 / 347H Flange Standards / Types And Pressure Class :
| ASME/ANSI B 16.5 | Welding Neck Flange, Slip on Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Ring Type Joint Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Welding Neck Flange, Blind Flange [Series A & B] |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Welding Neck Flange, Slip on Flange, Threaded Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| BS 4504 SEC 3.1 | Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Welding Neck Flange, Socket Welding Flange, Slip-On Flange, Blind Flange, Screwed Boss Flange, Lapped Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN |
| SS 347 | 1.4550 | S34700 | SUS 347 | 08Ch18N12B | X6CrNiNb18-10 |
| SS 347H | 1.4961 | S34709 | SUS 347H | - | X6CrNiNb18-12 |
| Grade | C | Mn | Si | P | S | Cr | Cb | Ni | Fe |
| SS 347 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 - 20.00 | 10xC – 1.10 | 9.00 - 13.00 | 62.74 min |
| SS 347H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 - 19.00 | 8xC – 1.10 | 9.0 -13.0 | 63.72 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1454 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| Stainless Steel 347 Flanges | Stainless Steel 347H EN 1092-1 Flanges |
| Stainless Steel 347 BS 4504 Flanges | Stainless Steel 347H Forged Flanges |
| Stainless Steel UNS S34700 Flanges | Stainless Steel 347 Slip on Flanges |
| SS 347H Flat Flange Suppliers | ANSI 347 Stainless Steel Blind Flange |
| SS UNS S34709 Weld Neck Flanges Dealer | SS 347 Socket weld Flanges Exporter |
| SS 347H Long Weld Neck Flanges Stockholder | Steel 347 Threaded Flanges Distributors |
| Stainless Steel SUS 347 Reducing Flanges | SS 347H Ring Type Joint Flanges Manufacturer |
| Stainless Steel DIN 1.4550 Orifice Flange | Stainless Steel DIN 1.4961 Spectacle Blind Flanges |
| Stainless Steel 347 WNRF Flange | Stainless 347H SORF Flanges |
| ANSI B16.5 SS 347H RTJ Flanges | SS 347 Screwed Flanges Stockist |
| ASTM A182 SS 347H Lap Joint Flanges | ASME SA182 SS 347 BLRF Flange |
| Stainless Steel 347 Raised Face Flanges | 347H SS Nipoflange |
| A182 SS 347H Square Flanges | ASME SA182M SS 347 SWRF Flange |
| Steel 347 Tongue & Groove Flanges | SS 347H Male & Female Flanges |
| Stainless Steel 347 DIN Flanges | SS 347H ASME B16.5 Flanges |
ASTM A182 347 / 347H Pipe Flanges are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of ASTM A182 347 / 347H Stainless Steel Flanges through a worldwide network of stock-keeping branches. These ASTM A182 347 / 347H Flange is use in various industries like :
