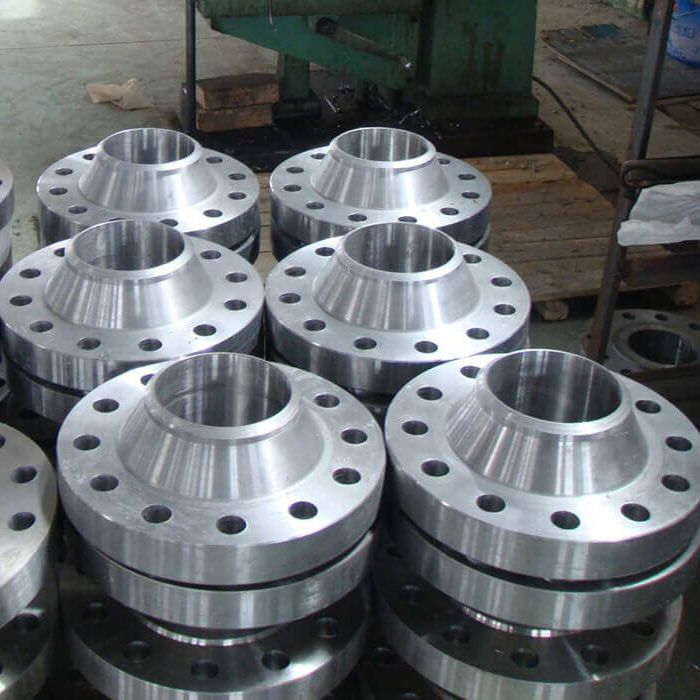

We firmly believe in contributing to an enterprise's progress, not only as a provider of goods and services but as a partner in building a strong and booming business. We, Fitwel Industries LLP undertake several strategies and implement them through transporting processes that add to the value of the business. We are a manufacturer, supplier, and exporter of Stainless Steel 904L Flanges that are a quality product from us supplied to you through strong logistical support and with no delay in shipment of the consignment. Our UNS N08904 Stainless Steel Blind Flanges are widely used to close the tail of the pipe of a pressure vessel, as they are designed to retain pressure in a high-pressure area, and are resistant to reducing acids like sulphuric acids in petrochemical plants and oil refineries. Our ASTM B649 Stainless Steel Lap Joint Flanges are super austenitic flanges, resistant to chloride stress corrosion cracking. They are a cost-effective alternative to transport acidic slurries. These SS 904L Threaded Flanges are oxidation and heat resistant. Also, We offer a wide range of Stainless Steel ASTM B649 904L Flanges such as SS 904L Slip On Flanges, SS 904L Weld Neck Flanges, SS 904L Socket Weld Flanges, SS 904L Blind Flanges, SS 904L Orifice Flanges, SS 904L Spectacle Blind Flanges, SS 904L Screwed / Threaded Flanges, SS 904L Reducing Flanges, SS 904L Ring Type Joint Flanges (RTJ), etc.
904L Stainless Steel Flanges are made up of a nickel-chromium austenitic stainless steel which has 23% nickel and 19% chromium minimum in the composition with carbon, manganese, silicon, phosphorus, sulfur, copper, and 4% molybdenum to it. Fitwel Industries LLP is a leading supplier and manufacturer of 904L Stainless Steel Flanges in various categories. The nickel-chromium-molybdenum composition provides the material with excellent corrosion resistance and strength. It also has good mechanical properties such as 220MPa minimum yield strength and 490MPa minimum tensile strength. The melting point of the material is also high at 1350 degrees Celsius. The Alloy 904L Slip On Flanges is used at the end of a pipe to close it, mostly permanently. The material is a low carbon version of the 904 grade of steel. This means welding and forming operations are easy on these flanges without risking grain formation and intergranular corrosion due to the carbide precipitation while welding.
Specifications : ASTM B649 / SB649
Dimensions : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size : 1/2" (15 NB) to 48" (1200NB)
Class / Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type : Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Forged and Plate Flanges
Products | Size | |
ASTM B649 SS 904L Slip-On Flanges | ASTM B649 SS 904L Threaded Flanges | Sizes 1/8″ – 36″ Raised Face or Flat Face |
ASTM B649 SS 904L Weld Neck Flanges | ASTM B649 SS 904L Socket Weld Flanges | |
ASTM B649 SS 904L Blind Flanges | ASTM B649 SS 904L Reducing Flanges | |
ASTM B649 SS 904L Lap Joint Flanges | ASTM B649 SS 904L Plate Flanges | |
ASTM B649 SS 904L Orifice Flanges | ASTM B649 SS 904L Forged Flanges | |
ASTM B649 SS 904L Ring Type Joint Flanges | ASTM B649 SS 904L Square Flanges |
SS 904L Flange Standards / Types And Pressure Class :
ASME/ANSI B 16.5 | Welding Neck Flange, Slip on Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Ring Type Joint Flange |
PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
ASME/ANSI B 16.47 | Welding Neck Flange, Blind Flange [Series A & B] |
PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
ASME/ANSI B 16.36 | Welding Neck Flange, Slip on Flange, Threaded Flange |
PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
BS 4504 SEC 3.1 | Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange |
PRESSURE CLASS | PN 2.5 TO PN 40 |
BS 4504[PART 1] | Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange |
PRESSURE CLASS | PN 2.5 TO PN 400 |
BS 1560 BOSS | Welding Neck Flange, Socket Welding Flange, Slip-On Flange, Blind Flange, Screwed Boss Flange, Lapped Flange |
PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
BS10 | Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange |
TABLE | D, E, F, H |
DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
PRESSURE CLASS | PN 6 TO PN 100 |
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | KS | AFNOR | EN |
SS 904L | 1.4539 | N08904 | SUS 904L | 904S13 | STS 317J5L | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
SS 904L | 0.020 max | 2.00 max | 1.00 max | 0.040 max | 0.030 max | 19.00 – 23.00 | 4.00 – 5.00 max | 23.00 – 28.00 | 1.00 – 2.00 |
Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35 % |
Stainless Steel 904L Flanges | Stainless Steel 904L EN 1092-1 Flanges |
Stainless Steel 904L BS 4504 Flanges | Stainless Steel 904L Forged Flanges |
Stainless Steel UNS N08904 Flanges | Stainless Steel 904L Slip on Flanges |
SS 904L Flat Flange Suppliers | ANSI 904L Stainless Steel Blind Flange |
SS 904L Weld Neck Flanges Dealer | SS 904L Socket weld Flanges Exporter |
SS 904L Long Weld Neck Flanges Stockholder | Steel 904L Threaded Flanges Distributors |
Stainless Steel SUS 904L Reducing Flanges | SS 904L Ring Type Joint Flanges Manufacturer |
Stainless Steel DIN 1.4539 Orifice Flange | Stainless Steel BS 904S11 Spectacle Blind Flanges |
Stainless Steel 904L WNRF Flange | Stainless 904L SORF Flanges |
ANSI B16.5 SS 904L RTJ Flanges | SS 904L Screwed Flanges Stockist |
ASTM B649 SS 904L Lap Joint Flanges | ASME SB649 SS 904L BLRF Flange |
Stainless Steel 904L Raised Face Flanges | 904L SS Nipoflange |
B649 SS 904L Square Flanges | ASME SB649 SS 904L SWRF Flange |
Steel 904L Tongue & Groove Flanges | SS 904L Male & Female Flanges |
Stainless Steel 904L DIN Flanges | SS 904L ASME B16.5 Flanges |
ASTM B649 904L Pipe Flanges are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of ASTM B649 904L Stainless Steel Flanges through a worldwide network of stock-keeping branches. These ASTM B649 904L Flange is use in various industries like :
